At Partition Stalls, we know that effective restroom signage design is essential for any public space. Clear, inclusive, and strategically placed signs can make a significant difference in user experience.
In this post, we’ll share practical tips to help you create user-friendly restroom signage that meets the needs of all visitors. From typography choices to symbol selection, these guidelines will enhance accessibility and navigation in your facilities.

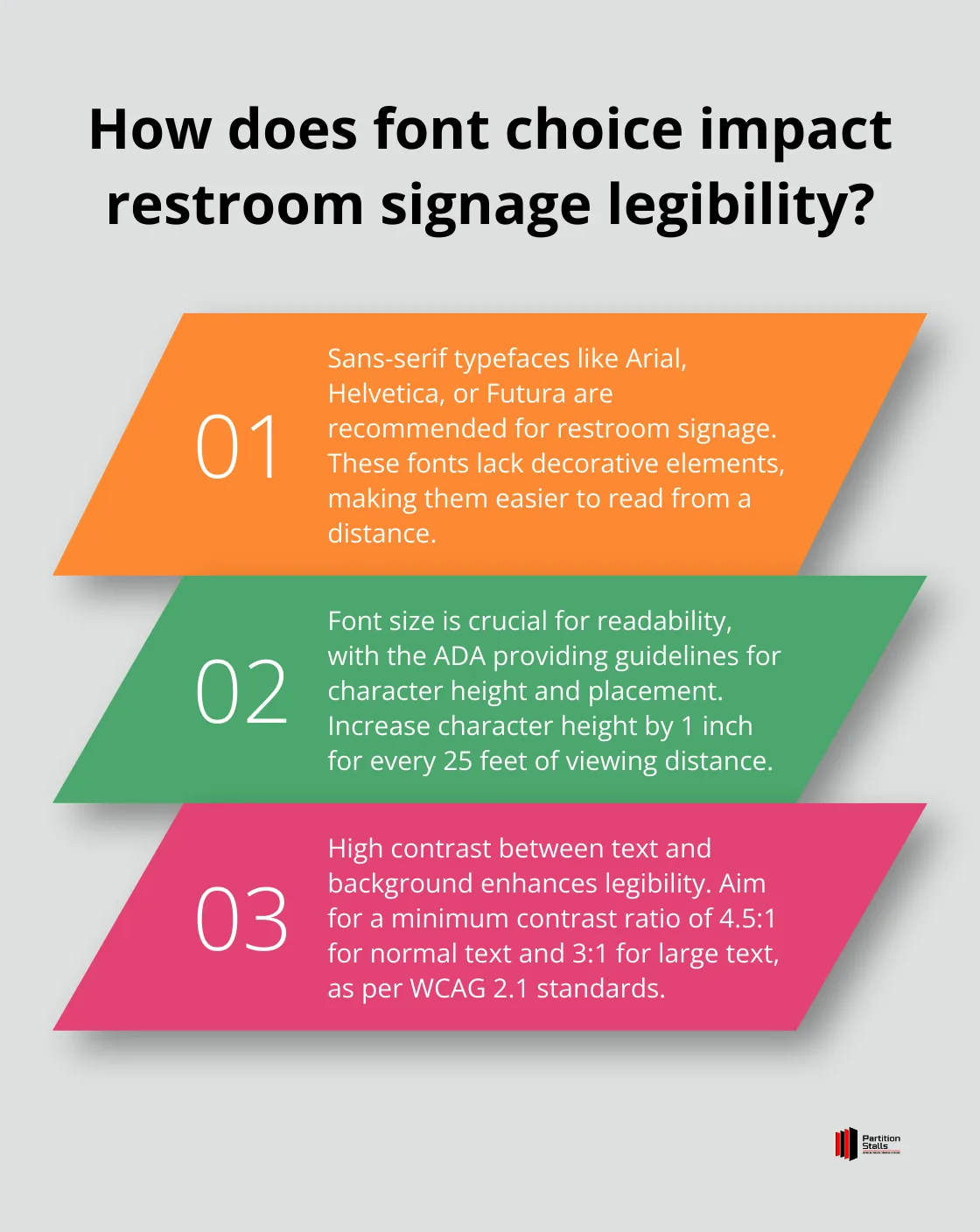

How to Design Clear and Legible Typography
Typography forms the backbone of effective restroom signage. Well-designed text enables users to quickly understand the information presented. At Partition Stalls, we’ve observed how proper typography improves the user experience in public restrooms.
Selecting the Right Font
Choose sans-serif typefaces like Arial, Helvetica, or Futura for restroom signage. These fonts lack decorative elements, which makes them easier to read from a distance. Avoid script or overly stylized fonts that can challenge individuals with visual impairments.
Sizing for Visibility
Font size determines readability. The Americans with Disabilities Act (ADA) provides guidelines for character height and placement. For optimal visibility, use larger sizes when possible. Increase the character height by 1 inch for every 25 feet of viewing distance as a general guideline.
Maximizing Contrast
High contrast between text and background colors enhances legibility. Black text on a white or light-colored background works well in most settings. For a modern look, white text on a dark background can be effective, but ensure the background doesn’t reflect too much under bright lighting.
The Colour Contrast Analyser tool (recommended by accessibility experts) helps determine if your color choices meet the Web Content Accessibility Guidelines (WCAG) 2.1 standards for contrast ratios. Try to achieve a minimum contrast ratio of 4.5:1 for normal text and 3:1 for large text.
Color choices also affect individuals with color vision deficiencies. Don’t rely solely on color to convey information. Use shapes, symbols, or text in combination with color for maximum clarity.
Testing and Refinement
After initial design, test your typography in real-world conditions. Place sample signs at various distances and lighting conditions to assess readability. Gather feedback from diverse user groups, including those with visual impairments. This process helps refine your design for optimal performance.
Clear and legible typography lays the foundation for effective communication in public spaces. The next step in creating user-friendly restroom signage involves incorporating inclusive and universal symbols, which we’ll explore in the following section.

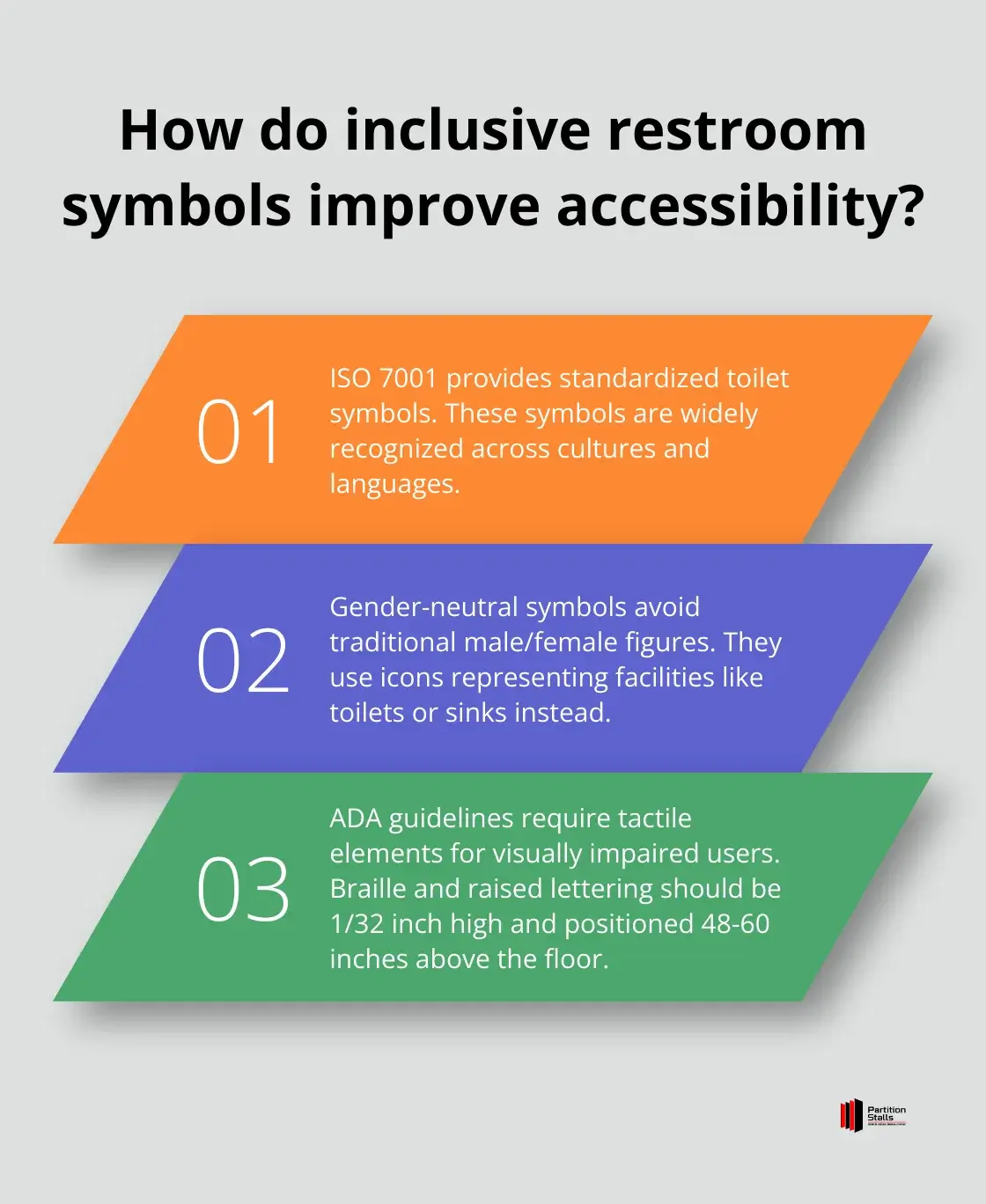

How to Create Inclusive Restroom Symbols
Creating inclusive restroom symbols ensures all users feel welcome and can easily navigate facilities. Effective symbols significantly improve user experience and accessibility in public spaces.
Choose Universal Pictograms
Select widely recognized pictograms for restroom signage. The International Organization for Standardization (ISO) provides standardized symbols understood across cultures and languages. For example, the ISO 7001 symbol for toilets features a simple, stylized figure that’s easily recognizable.
A study draws attention to the challenging perception of two public information pictograms, ‘elevator’ and ‘toilet’. This highlights the importance of carefully selecting and testing pictograms for clarity and universal understanding.
Embrace Gender-Neutral Design
Gender-neutral restroom symbols have become increasingly important in public spaces. Instead of traditional male and female figures, use icons that represent the facilities themselves (such as a toilet or sink symbol). This approach promotes inclusivity and avoids potential discomfort for transgender or non-binary individuals.
A UCLA study found no evidence that letting transgender people use public facilities that align with their gender identity increases safety risks. This supports the implementation of gender-neutral symbols to create more welcoming spaces for all users.
Enhance Accessibility with Tactile Elements
Incorporate braille and raised lettering into your restroom signage to ensure accessibility for visually impaired users. The Americans with Disabilities Act (ADA) provides specific guidelines for tactile signs, including character height, spacing, and placement.
Raised characters should measure at least 1/32 inch high and include Grade 2 Braille. Position these tactile elements 48-60 inches above the floor for easy reach. (Braille is not just a direct translation of the text; it uses contractions and special symbols, so consult with a certified braille transcriber to ensure accuracy.)
Test and Refine
After initial design, test your symbols in real-world conditions. Place sample signs at various distances and lighting conditions to assess visibility and comprehension. Gather feedback from diverse user groups, including those with visual impairments. This process helps refine your design for optimal performance.
The combination of clear typography, inclusive symbols, and tactile elements creates restroom signage that serves all users effectively. The next step in optimizing your restroom design involves strategic placement and visibility, which we’ll explore in the following section.

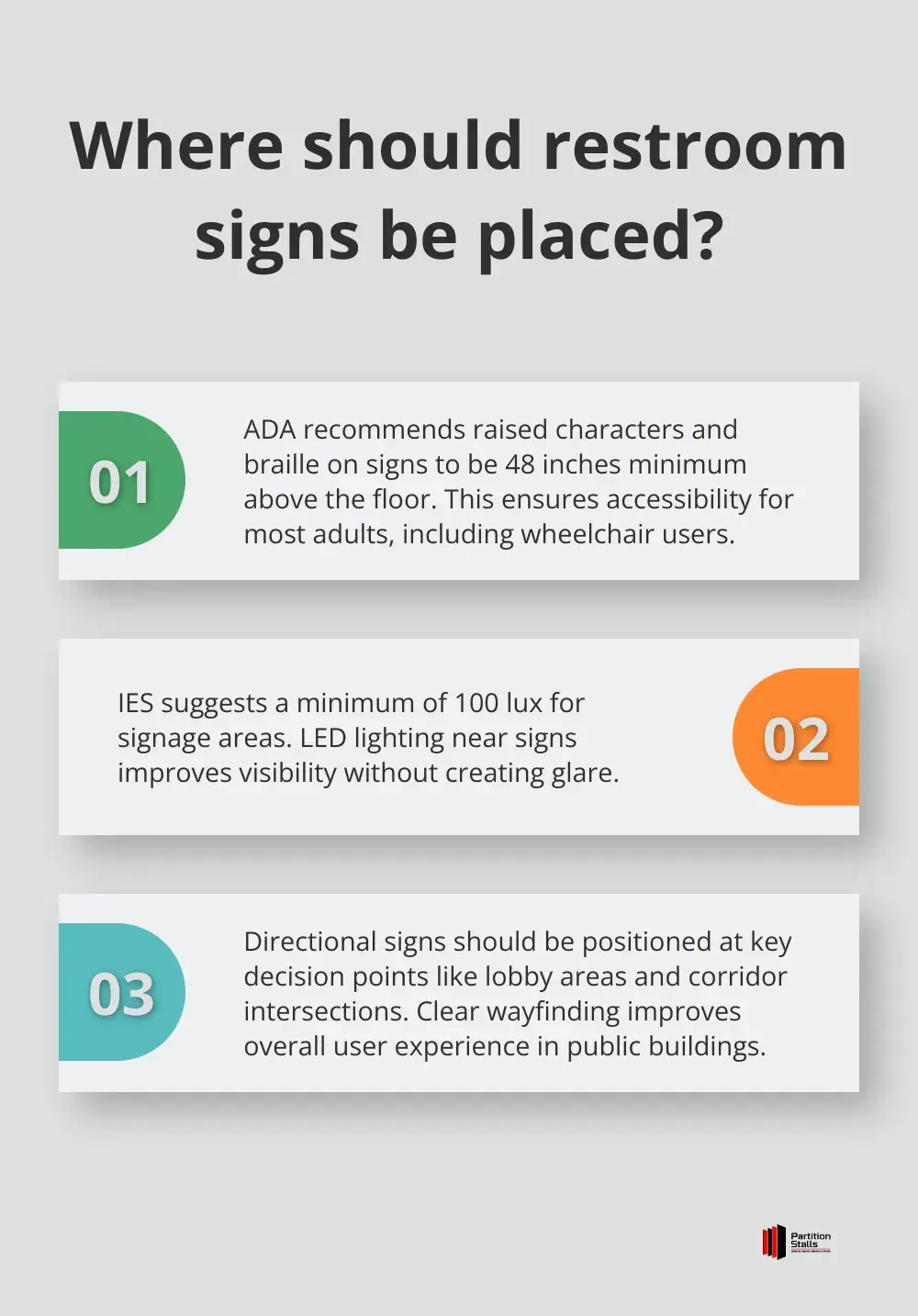

Where to Place Restroom Signs for Maximum Effectiveness
Optimal Height for Visibility
The Americans with Disabilities Act (ADA) recommends that raised characters and braille on signs must be located 48 inches minimum above the finish floor or ground surface, measured from the baseline of the lowest characters. This ensures accessibility for most adults, including those who use wheelchairs.
Lighting Considerations
Proper illumination enhances sign readability. The Illuminating Engineering Society (IES) suggests a minimum of 100 lux (10 foot-candles) for signage areas. Install LED lighting near signs to improve visibility without creating glare. For facilities that operate 24/7, maintain consistent lighting throughout the day and night.
Directional Guidance
Effective wayfinding starts at facility entrances. Position directional signs at key decision points (such as lobby areas, corridor intersections, and elevator banks). Research conducted to support hospital redevelopment planning at Imperial College Healthcare NHS Trust found that clear wayfinding can improve overall user experience in public buildings.
Use consistent design elements and colors for all directional signs to create a cohesive system. Point arrows in the exact direction of travel, not at an angle. When possible, include estimated walking times or distances to help users gauge their journey.
Sight Line Considerations
Consider sight lines when placing signs. Ensure that architectural elements or furniture don’t obstruct the view. In large open spaces, use overhead signs for better visibility from a distance.
Compliance with Regulations
Always check local building codes and accessibility regulations when placing restroom signs. These regulations (which may vary by jurisdiction) often specify exact placement requirements for different types of signs.

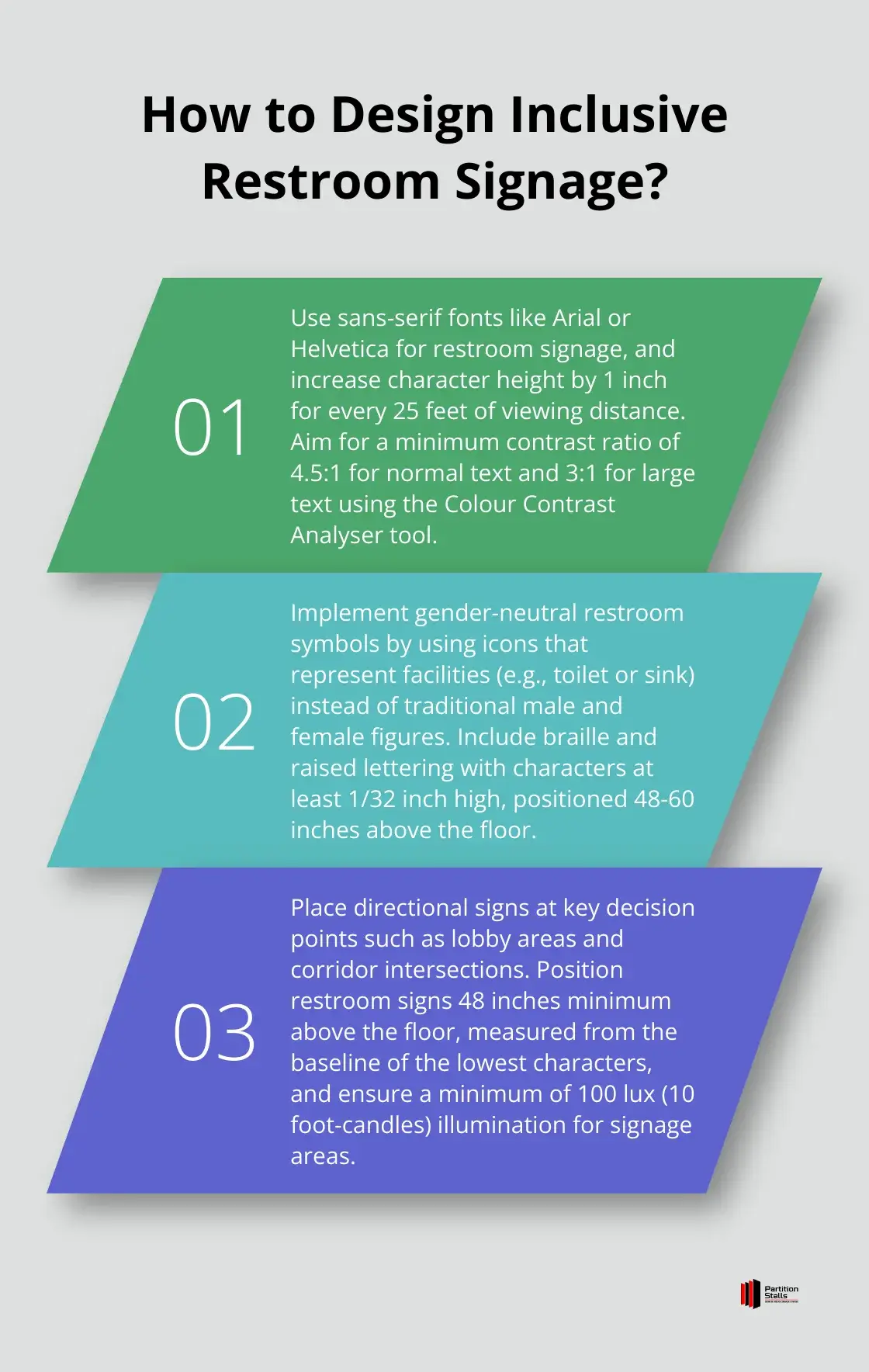

Final Thoughts
Effective restroom signage design enhances accessibility and user experience in public spaces. Clear typography, inclusive symbols, and strategic placement create welcoming environments for all visitors. These design principles reduce confusion and stress, while demonstrating a commitment to inclusivity.
Facility managers and business owners should implement these signage strategies to improve their restroom facilities. Well-designed signage complements other restroom elements, creating a positive impression of the entire space. The overall perception of a facility often hinges on the quality of its restrooms.
At Partition Stalls, we offer high-quality commercial restroom solutions that align with effective signage design. Our durable partitions and hygienic dispensers (along with our free consultation service) can help transform your restroom facilities into stylish and functional spaces.
