At Partition Stalls, we understand the critical importance of ADA requirements for bathroom grab bars in public facilities. These essential safety features provide support and accessibility for individuals with disabilities.
Our comprehensive guide outlines the key regulations, design specifications, and placement guidelines to ensure full compliance with ADA standards. We’ll explore the crucial aspects of grab bar installation, from proper positioning to material requirements, helping you create accessible and safe bathroom environments.
Where Should Grab Bars Be Installed?
Toilet Area Requirements

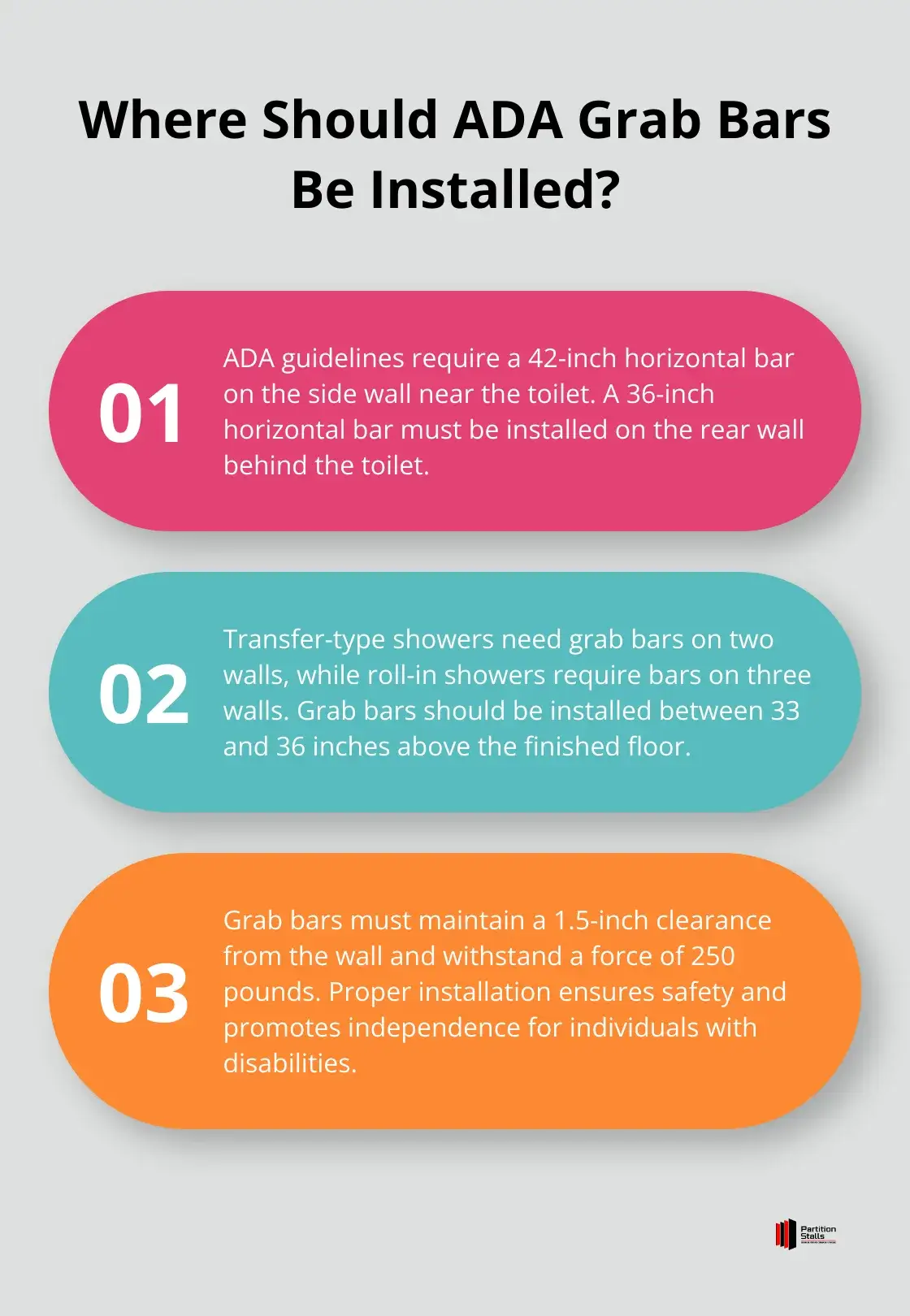

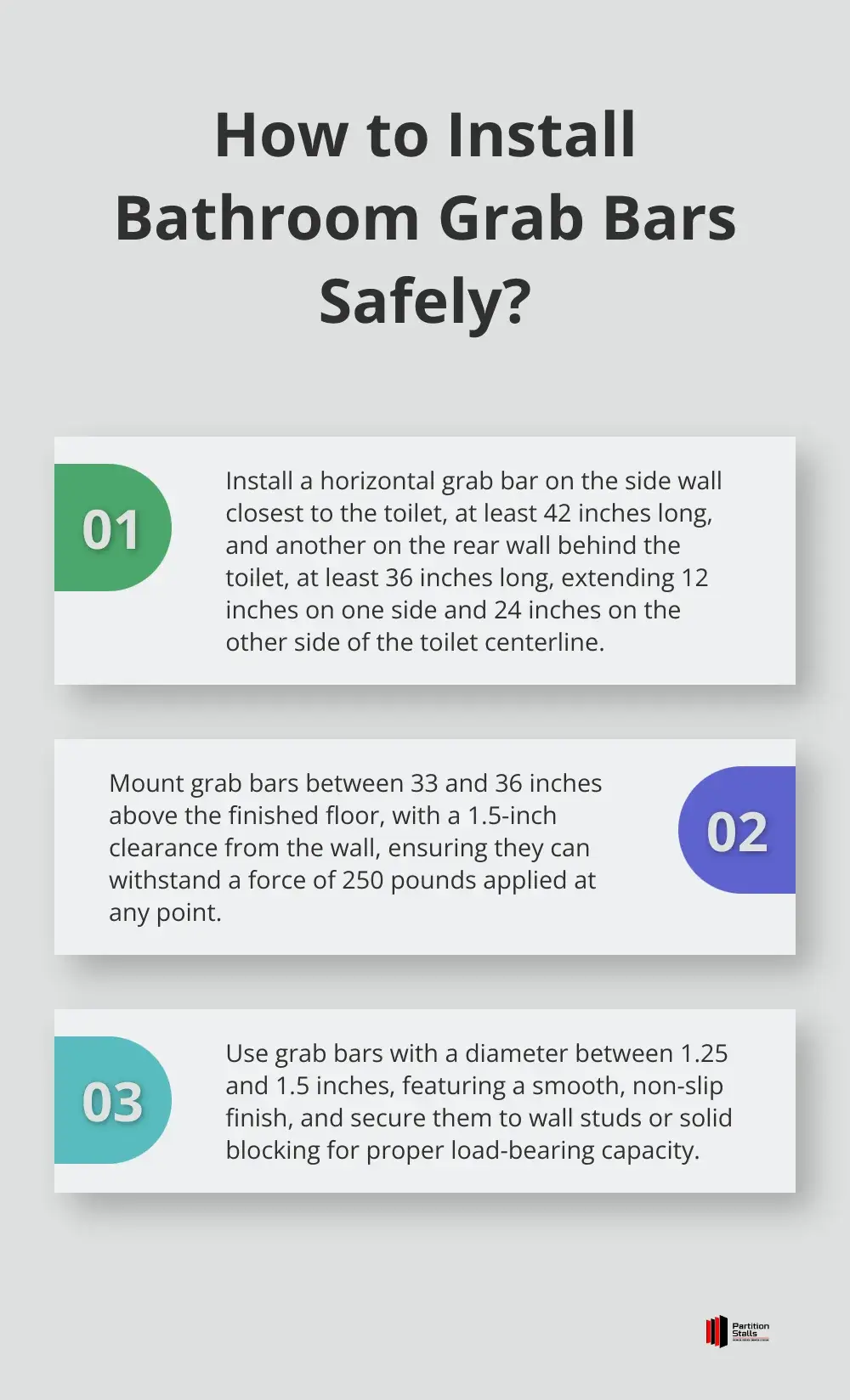

ADA guidelines mandate specific grab bar placements in toilet areas. A horizontal bar must be installed on the side wall closest to the toilet. This bar should be a minimum of 42 inches in length. The rear wall behind the toilet requires another horizontal grab bar. It must be at least 36 inches long, extending from the side wall a minimum of 12 inches on one side and 24 inches on the other side of the toilet centerline.
Shower Area Guidelines
Transfer-type showers need grab bars on two walls. A horizontal bar on the back wall should span the full width of the shower. The side wall requires another horizontal bar that extends the full depth of the shower. Roll-in showers demand grab bars on three walls, with specific placement depending on the presence of a seat.
Height and Clearance Specifications
ADA specifies grab bar installation between 33 and 36 inches above the finished floor. This height range ensures accessibility for most users, whether they transfer from a wheelchair or need support while standing. Maintaining a 1.5-inch clearance between the wall and the grab bar allows for a secure grip.
Load-Bearing Requirements
The U.S. Access Board requires grab bars to withstand a force of 250 pounds applied at any point on the bar. This strength requirement (essential for user safety) necessitates proper anchoring techniques and materials during installation.
Additional Considerations
Proper grab bar placement not only ensures ADA compliance but also maximizes the functionality and safety of bathroom facilities for all users. Careful attention to these guidelines promotes independence and dignity for individuals with disabilities.
The next chapter will explore the design and material specifications for ADA-compliant grab bars, including diameter requirements and approved materials.
Key Design Features of ADA-Compliant Grab Bars
Diameter and Gripping Surface Specifications

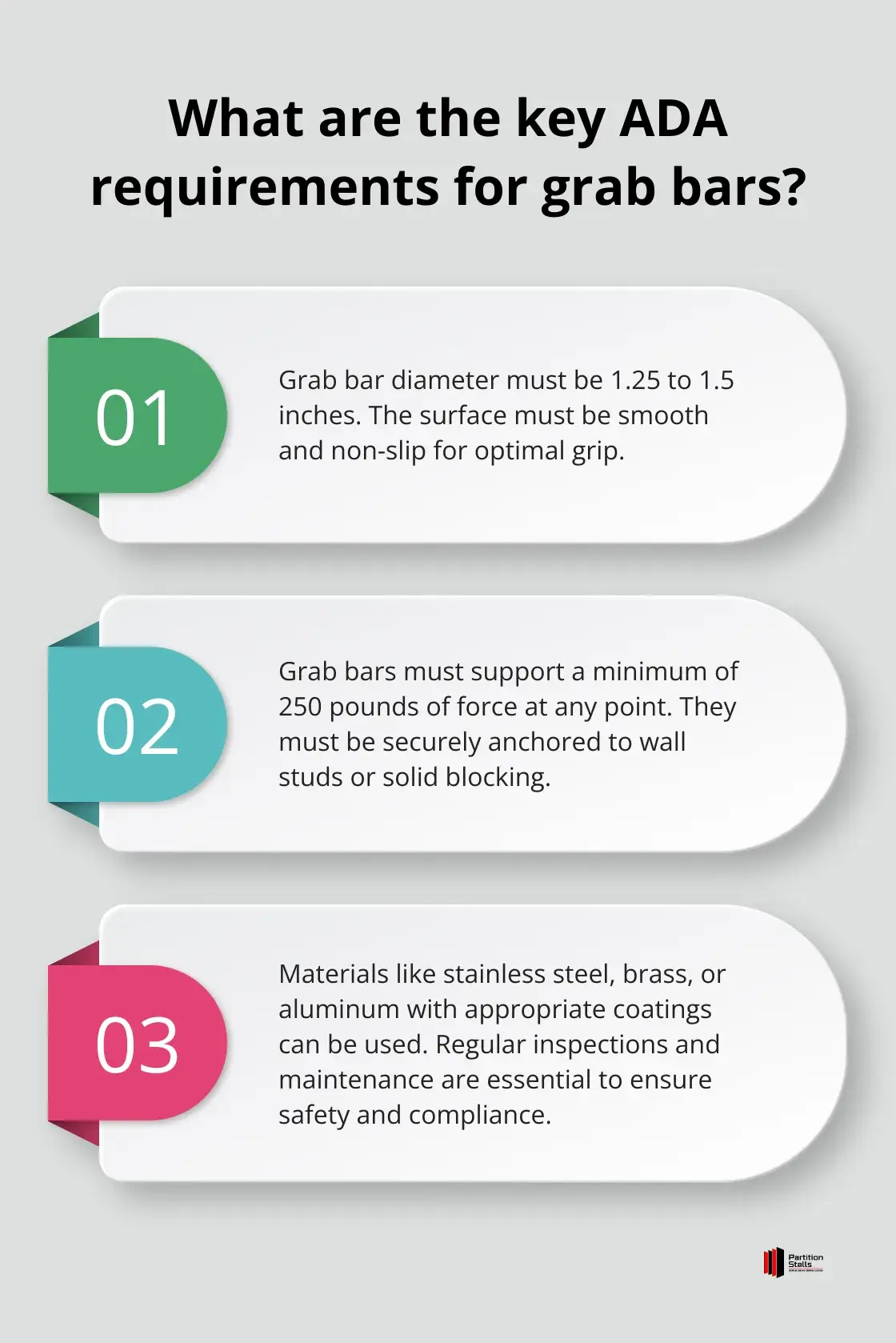

ADA guidelines mandate specific dimensions for grab bars to ensure optimal usability. The diameter must range between 1.25 and 1.5 inches, providing an ideal gripping surface for most users. This size allows for a secure hold without causing strain.
The surface texture of grab bars plays a vital role in their effectiveness. ADA standards require a smooth, non-slip finish free from sharp edges or abrasive elements. This design prevents hand injuries and ensures a firm grip, even in wet conditions. Some manufacturers offer textured surfaces or special coatings to enhance grip without compromising comfort (a feature worth considering for high-traffic areas).
Load-Bearing Capacity Requirements
Safety stands as the paramount concern in grab bar installation. ADA standards dictate that grab bars must support a minimum of 250 pounds (113 kg) of force applied at any point on the bar without any permanent deformation. This requirement ensures the bars can withstand the full weight of a user if necessary.
Proper installation proves essential to meet this standard. Installers must anchor grab bars securely to the wall structure, typically into wall studs or solid blocking. Surface-mounted grab bars do not provide sufficient support and fail to meet ADA requirements. (It’s worth noting that some manufacturers offer grab bars exceeding these load-bearing requirements for an extra margin of safety.)
Material Selection and Durability
The choice of material for grab bars impacts both their longevity and appearance. Stainless steel remains a popular option due to its strength, corrosion resistance, and ease of cleaning. However, other materials such as brass or aluminum with appropriate coatings can also meet ADA requirements.
When selecting materials, consider the overall bathroom design and potential environmental factors. In high-humidity areas, corrosion-resistant finishes prove particularly important. Some facilities opt for grab bars with antimicrobial coatings to enhance hygiene, especially in healthcare settings.
Installation and Maintenance Considerations
Proper installation determines the performance and longevity of grab bars. Installers must follow manufacturer guidelines and local building codes meticulously. Regular inspections and maintenance verify that grab bars remain securely fastened and free from damage.
Facility managers should implement a routine maintenance schedule to check for loose fittings, signs of corrosion, or wear on the gripping surface. Prompt replacement of any compromised grab bars maintains ADA compliance and user safety.
The next section will explore additional ADA requirements for bathroom accessibility, including the requirement that unisex toilet rooms, where provided, have privacy latches and contain at most one lavatory, one water closet, and one urinal. These guidelines work in tandem with proper grab bar installation to create truly accessible restroom environments.
Beyond Grab Bars: Comprehensive Bathroom Accessibility
Spacious Layouts for Maneuverability
ADA guidelines mandate specific clear floor space requirements to accommodate wheelchair users. Clear floor space is required at each accessible element, including storage cabinets, drinking fountains and other fixtures, and electrical outlets. This space permits a 180-degree turn.

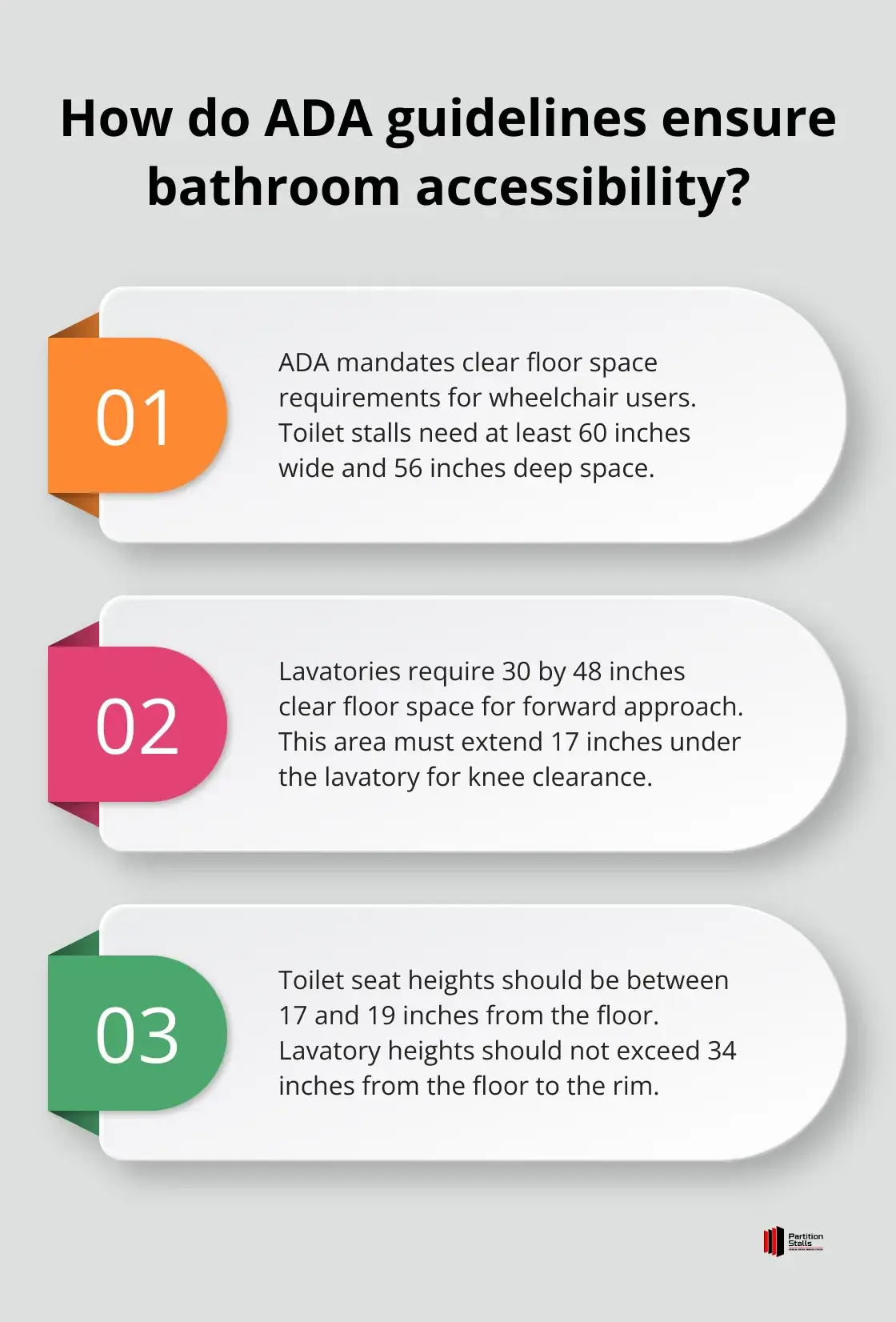

Toilet stalls require a clear floor space of at least 60 inches wide and 56 inches deep for wheelchair-accessible compartments. This space enables users to approach the toilet from a side transfer position.
Lavatories need a clear floor space of 30 inches by 48 inches, positioned for a forward approach. This area must extend 17 inches under the lavatory to provide adequate knee clearance.
Precise Fixture Heights
The height of bathroom fixtures significantly impacts accessibility. ADA guidelines specify toilet seat heights between 17 and 19 inches from the floor to the top of the seat. This range accommodates most users and facilitates easier transfers from wheelchairs.
Lavatory heights should not exceed 34 inches from the floor to the rim or counter edge. Mirrors above lavatories or counters must have their bottom edge no higher than 40 inches above the floor. For mirrors not located above lavatories, the bottom edge should not exceed 35 inches from the floor.
Doorways and Maneuvering Space
Accessible bathrooms require doorways with a minimum clear width of 32 inches when the door opens to 90 degrees. This width ensures easy passage for wheelchair users.
The ADA specifies different clearance requirements based on the approach to the door (front, latch side, or hinge side) and whether the door opens inward or outward. For example, a front approach to a pull-side door requires 60 inches of clearance perpendicular to the doorway.
Additional Accessibility Features
Faucets and other operable parts must not require tight grasping, pinching, or twisting of the wrist to operate. Lever-operated or push-type mechanisms often meet this requirement effectively.
Toilet paper dispensers should be within reach from the toilet. The ADA recommends placement between 7 and 9 inches in front of the toilet, measured to the centerline of the dispenser.
Signage and Visual Indicators
Clear, high-contrast signage with raised characters and Braille must identify accessible restrooms. These signs should be mounted on the wall adjacent to the latch side of the door (or the nearest adjacent wall if no wall space exists).
Visual alarms (if provided) must be visible from all areas of the restroom, including toilet stalls. This ensures that individuals with hearing impairments receive emergency notifications.
(These comprehensive guidelines work in concert to create bathrooms that meet both legal requirements and practical needs of all users.)
Final Thoughts on ADA Compliance for Bathroom Grab Bars
ADA requirements for bathroom grab bars ensure accessible and safe environments for all users. These guidelines allow individuals with disabilities to navigate restroom facilities independently and with dignity. Every aspect of grab bar installation contributes to a more inclusive public space, from precise placement specifications to load-bearing capacities.
Compliance with ADA standards demonstrates respect for diverse clientele and protects against potential liability issues. The impact of proper grab bar installation extends beyond accessibility, enhancing overall bathroom safety for all users (including the elderly and those with temporary mobility challenges). Numerous resources are available for those who seek to implement ADA-compliant bathroom solutions.
