At Partition Stalls, we understand the critical role of pipeline support systems in maintaining infrastructure integrity. Effective pipeline support design is essential for ensuring the longevity and safety of these vital networks.
Our team of experts has compiled a comprehensive guide to help you navigate the complexities of designing robust support systems. This blog post will explore key considerations, best practices, and innovative solutions for optimizing your pipeline support infrastructure.
What Are Pipeline Support Systems?
Definition and Purpose
Pipeline support systems are essential components in fluid transportation infrastructure. These systems distribute the weight of pipes and their contents, minimize stress, and accommodate movement due to thermal expansion or external forces. They ensure the stability, safety, and longevity of pipelines across various industries.
Types of Pipeline Supports

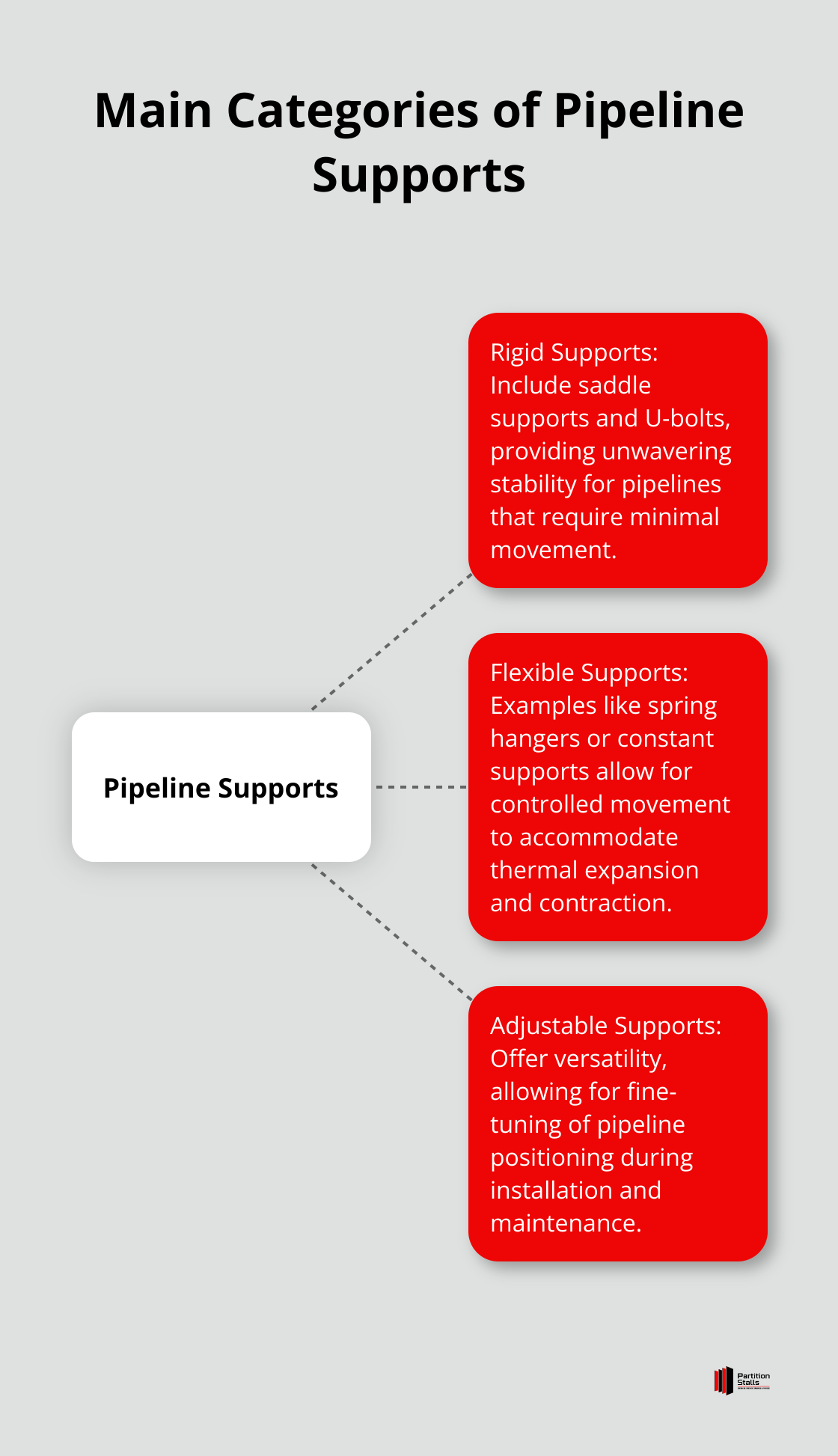

Pipeline supports fall into three main categories:
- Rigid Supports: These include saddle supports and U-bolts, which provide unwavering stability for pipelines that require minimal movement.
- Flexible Supports: Examples like spring hangers or constant supports allow for controlled movement to accommodate thermal expansion and contraction.
- Adjustable Supports: These offer versatility, allowing for fine-tuning of pipeline positioning during installation and maintenance.
Factors Influencing Support Design
Several factors shape the design of pipeline supports:
- Pipe Material: Different materials (e.g., carbon steel, PVC, HDPE) require specific support configurations.
- Temperature: Fluctuations cause expansion and contraction, necessitating supports that handle these changes without compromising structural integrity.
- Pressure: High-pressure pipelines demand more robust support systems to prevent leaks and ruptures.
- Environmental Conditions: Corrosive atmospheres require resistant materials like stainless steel or fiberglass-reinforced plastics. Seismic zones need supports designed to withstand ground movements and protect pipelines during earthquakes.
Innovative Approaches to Support Design
Recent advancements have led to more efficient and cost-effective solutions:
- Composite Materials: These offer superior strength-to-weight ratio and corrosion resistance.
- Smart Sensors: Integrated into support systems, these detect changes in load distribution, temperature, and vibration. This technology enables real-time monitoring and predictive maintenance, reducing unplanned downtime by up to 50% in some industrial applications.
As we move forward, it becomes clear that the design of effective pipeline support systems requires careful consideration of various factors and the integration of innovative technologies. The next section will explore the key considerations in pipeline support design, including load distribution, stress analysis, and vibration reduction.
Mastering Pipeline Support Design
Optimizing Load Distribution
Load distribution plays a central role in pipeline support design. Advanced stress analysis software calculates the optimal spacing between supports. This approach includes calculations of pipe wall thickness, required reinforcements, and considerations for internal and external pressure. We recommend thorough finite element analysis (FEA) to identify potential weak points and adjust support placement accordingly.
Managing Thermal Dynamics

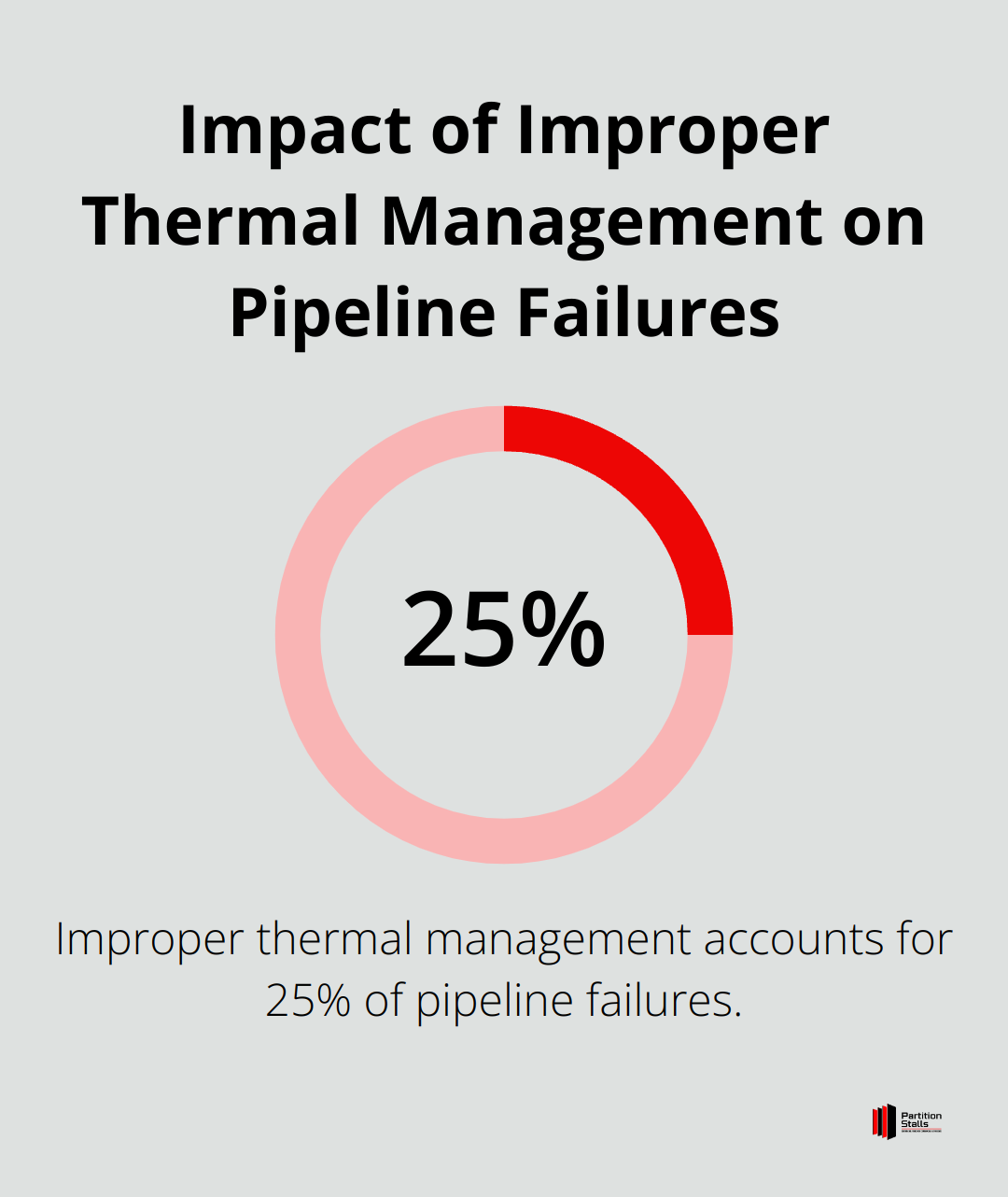

Thermal expansion and contraction present significant challenges in pipeline design. A study by the American Society of Mechanical Engineers reveals that improper thermal management accounts for 25% of pipeline failures. To mitigate this risk, designers should use expansion joints and loops strategically placed along the pipeline. These components absorb thermal movement, which reduces stress on the supports and extends the system’s lifespan.
Minimizing Vibration and Noise
Vibration can lead to fatigue failure and noise pollution in pipeline systems. Implementation of vibration dampeners can reduce noise levels by 5 to 15 decibels in various industrial applications. We recommend a thorough vibration analysis during the design phase and installation of appropriate dampening systems at identified problem areas.
Ensuring Material Compatibility
Corrosion protection and material compatibility are essential for long-term pipeline integrity. A report from the National Association of Corrosion Engineers indicates that corrosion-related issues cost the oil and gas industry over $1.3 billion annually. To combat this, designers should use corrosion-resistant materials (like stainless steel or fiberglass-reinforced plastics) for supports in harsh environments. Additionally, implementation of cathodic protection systems can further extend the lifespan of metal components.
Innovative Design Approaches
Recent advancements have led to more efficient and cost-effective solutions. Composite materials offer superior strength-to-weight ratio and corrosion resistance. Smart sensors, integrated into support systems, detect changes in load distribution, temperature, and vibration. This technology enables real-time monitoring and predictive maintenance, which reduces unplanned downtime in industrial applications.
The next section will explore best practices for implementing these design principles in real-world scenarios, providing practical guidance for engineers and project managers involved in pipeline support system design.
Maximizing Pipeline Support Effectiveness
Precision in Support Spacing

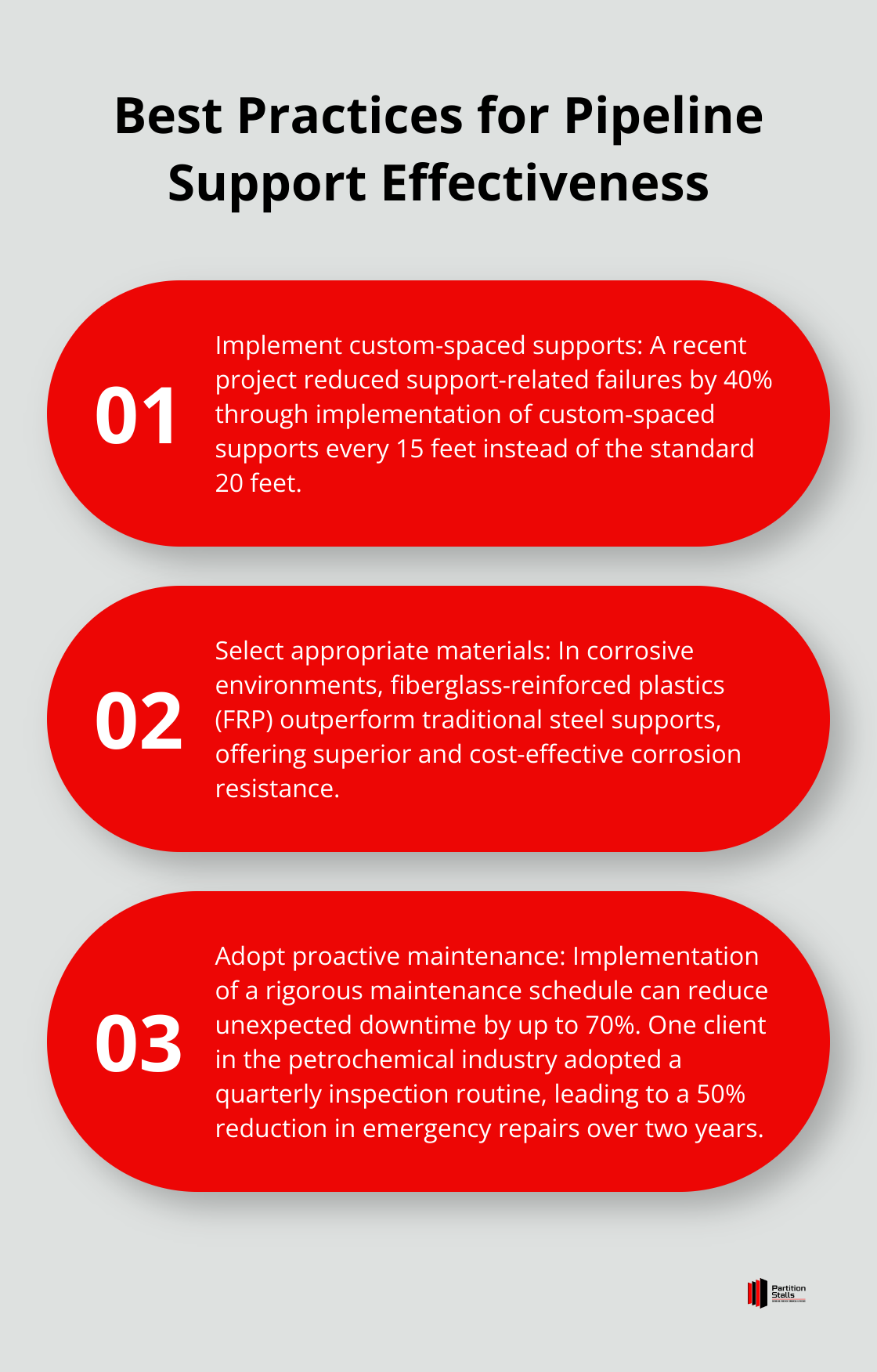

The spacing between pipeline supports determines optimal load distribution. Industry standards recommend support spacing should not exceed 30 times the pipe diameter for horizontal runs. This serves as a starting point. Specialized software calculates exact spacing based on pipe material, fluid weight, and environmental factors. A recent project reduced support-related failures by 40% through implementation of custom-spaced supports every 15 feet instead of the standard 20 feet.
Material Selection for Longevity
The right materials for pipeline supports can extend system lifespan dramatically. In corrosive environments (coastal areas or chemical plants), fiberglass-reinforced plastics (FRP) outperform traditional steel supports. FRP typically offers superior and cost-effective corrosion resistance relative to other construction materials. For high-temperature applications, alloy steels with high chromium content withstand temperatures up to 1100°F (593°C) without significant degradation.
Strategic Use of Expansion Joints
Thermal expansion presents a major concern in pipeline design. Expansion joints at strategic locations alleviate stress on the entire system. A general guideline suggests installation of an expansion joint for every 100 feet of straight pipe run in metal pipelines. This varies based on temperature fluctuations and pipe material. A recent project implemented a combination of bellows-type expansion joints and pipe loops, which reduced thermal stress by 60% compared to a rigid system.
Proactive Maintenance Planning
Regular inspection and maintenance ensure the longevity of pipeline support systems. A proactive approach utilizes technologies like ultrasonic thickness testing and infrared thermography to detect potential issues before escalation. Implementation of a rigorous maintenance schedule can reduce unexpected downtime by up to 70%. One client in the petrochemical industry adopted a quarterly inspection routine, which led to a 50% reduction in emergency repairs over two years.
Innovative Support Technologies
Advanced support technologies enhance pipeline system performance. Smart sensors integrated into support systems detect changes in load distribution, temperature, and vibration. This technology enables real-time monitoring and predictive maintenance, which reduces unplanned downtime in industrial applications. Composite materials offer superior strength-to-weight ratio and corrosion resistance, providing additional benefits in challenging environments.
Final Thoughts
Pipeline support design requires careful consideration of multiple factors to ensure the longevity and safety of infrastructure. Engineers must address load distribution, thermal dynamics, vibration control, and material compatibility to create robust support systems. The implementation of smart sensors and advanced materials enhances the performance and reliability of these critical components.
Each pipeline project demands tailored solutions that address specific environmental conditions, operational requirements, and regulatory standards. These customized approaches directly impact the efficiency, safety, and lifespan of the entire pipeline system. At Partition Stalls, we recognize the value of expert guidance in specialized fields, although our focus remains on high-quality commercial restroom solutions.
Project managers and engineers should consult industry experts to develop optimal support system designs for their specific pipeline projects. Organizations can reduce the risk of failures, minimize downtime, and optimize operational efficiency through thoughtful design, strategic material selection, and proactive maintenance planning. The industry continues to evolve, and staying informed about the latest advancements in pipeline support design will help build more resilient and sustainable infrastructure for the future.
