At Partition Stalls, we understand the critical role of trunnion support systems in various industrial applications. These systems are essential for supporting heavy rotating equipment and ensuring smooth operations.
Effective trunnion support design is crucial for maintaining safety, efficiency, and longevity in industrial settings. This blog post will explore key factors and best practices for designing robust trunnion support systems that meet the demands of modern industry.
What Are Trunnion Support Systems?
Definition and Core Components

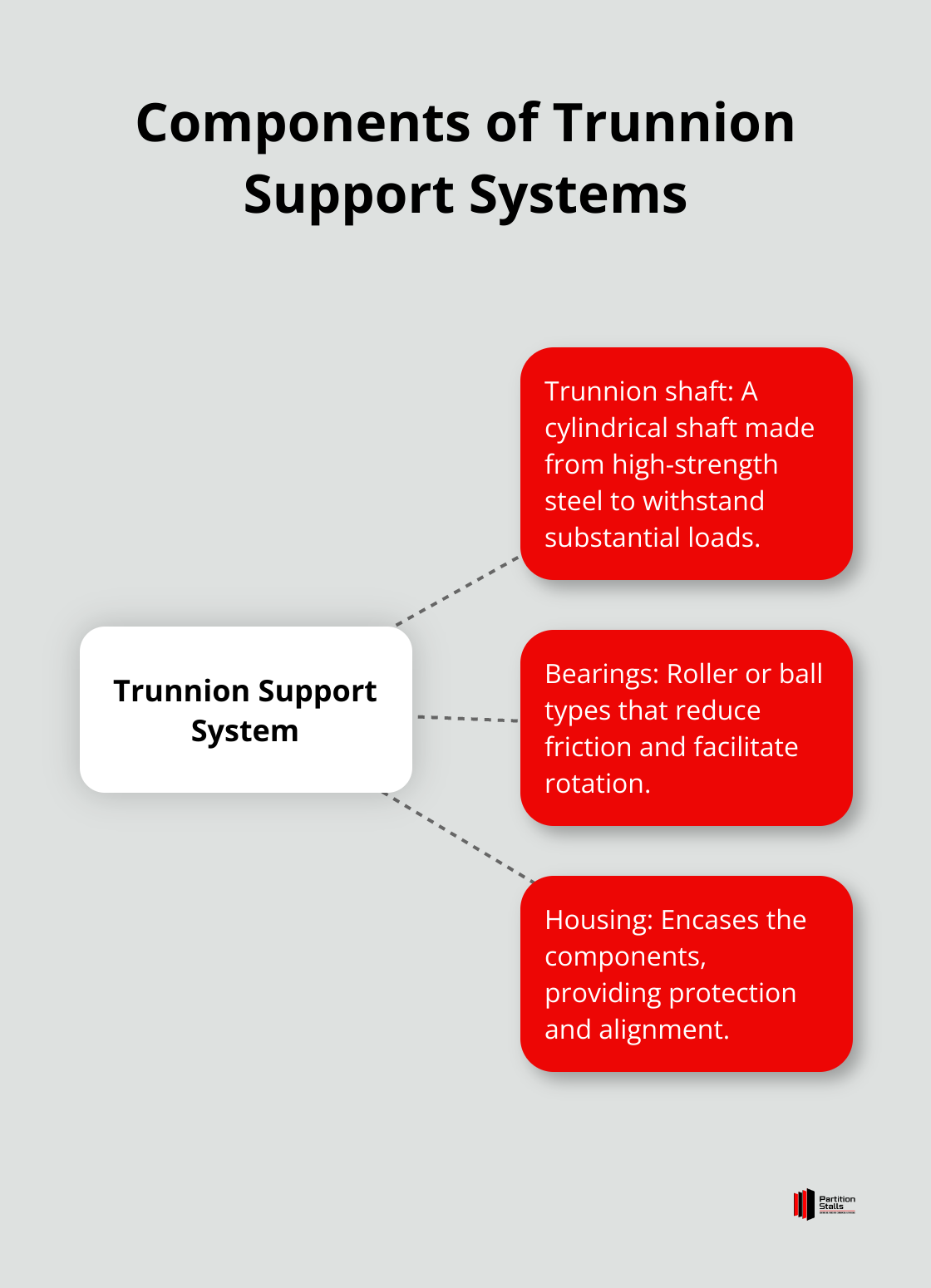

Trunnion support systems play a vital role in industrial machinery. These systems support heavy loads and enable smooth rotation of large equipment. The main components include:
- Trunnion shaft: A cylindrical shaft made from high-strength steel to withstand substantial loads.
- Bearings: Roller or ball types that reduce friction and facilitate rotation.
- Housing: Encases the components, providing protection and alignment.
A study analyzed the fracture mechanics of flaws, such as cracks observed in a ball mill trunnion and compared the theoretical values of growth rate of these defects.
Industrial Applications
Trunnion supports find widespread use across various industries:
- Mining: Support large grinding mills
- Oil and gas: Enable pipeline valve operations
- Manufacturing: Used in rotary kilns and dryers
Research has been conducted on the technology for repairing precision bearing trunnions of oversized ‘raw’ rolls, which has been developed, tested on plants, and theoretically justified.
Design Considerations for Optimal Performance
Engineers must account for several factors when designing trunnion support systems:
- Load capacity: The system must handle both static and dynamic loads without failure.
- Material selection: Considerations include corrosion resistance and thermal expansion properties.
- Safety factor: The American Petroleum Institute recommends a safety factor of at least 1.5 when calculating load capacities (particularly important for oil and gas applications).
- Alignment: Proper alignment prevents premature wear, reduces energy consumption, and avoids potential equipment failure.
Regular maintenance checks (including the use of laser alignment tools) help maintain optimal performance of trunnion support systems.
Importance of Precision in Manufacturing
The manufacturing process of trunnion support components requires high precision. Tolerances for critical dimensions often fall within ±0.05 mm to ensure proper fit and function. Advanced manufacturing techniques, such as computer numerical control (CNC) machining, help achieve these tight tolerances consistently.
As we move forward, let’s explore the specific factors that engineers must consider when designing effective trunnion support systems for various industrial applications.
Designing Trunnion Supports for Maximum Performance
Load Analysis and Stress Distribution
Effective trunnion support design requires accurate load analysis and stress distribution calculations. Engineers must account for static and dynamic loads, including equipment weight, operational forces, and potential impact loads. ADINA, a premier Finite Element Analysis (FEA) software, simulates stress distribution and identifies potential weak points in the design, particularly for challenging nonlinear problems involving geometric and material complexities.

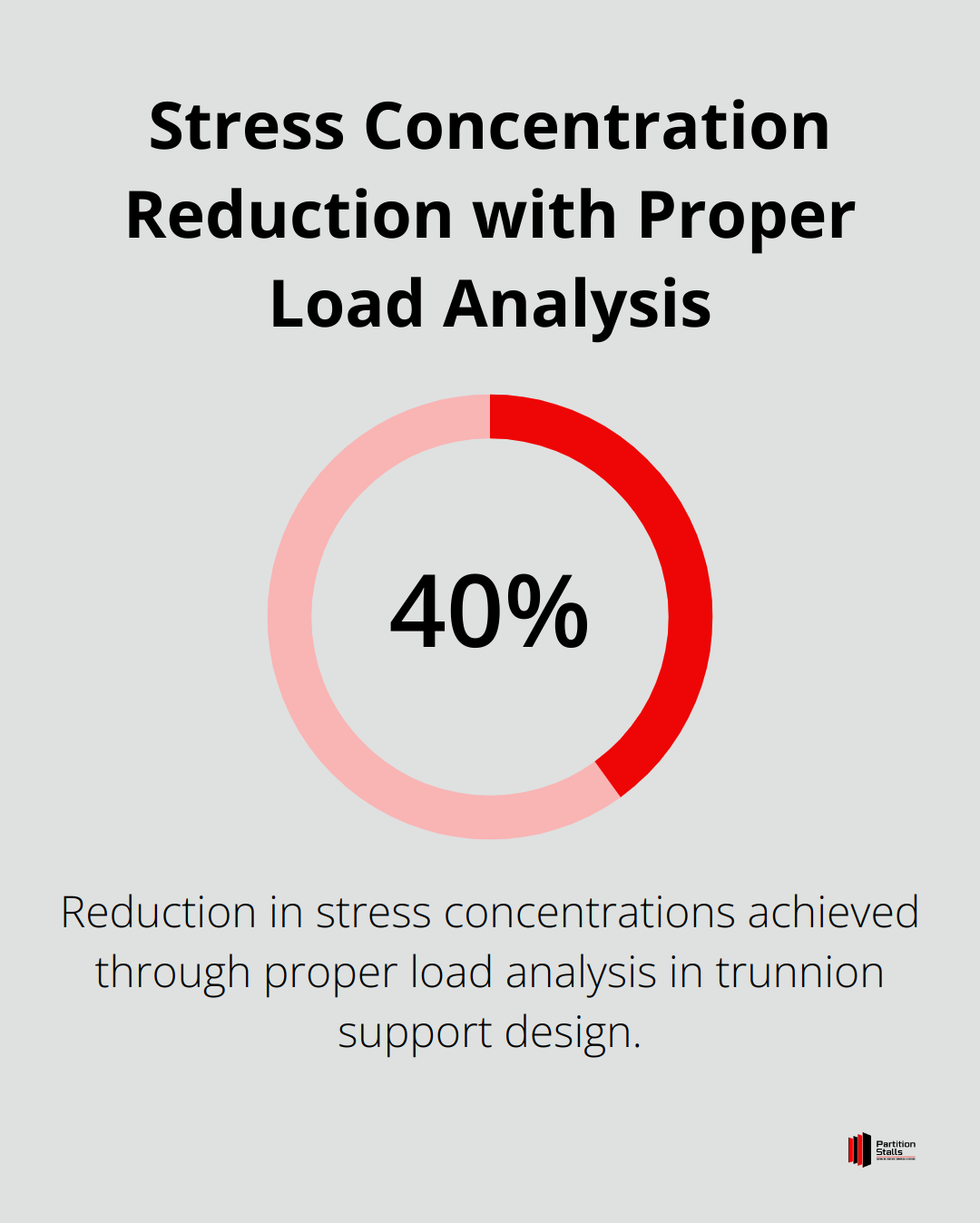

A study in the Journal of Engineering Mechanics revealed that trunnion supports designed with proper load analysis can reduce stress concentrations by up to 40% compared to standard designs. This reduction in stress can significantly increase the lifespan of the support system and the equipment it serves.
Material Selection for Longevity

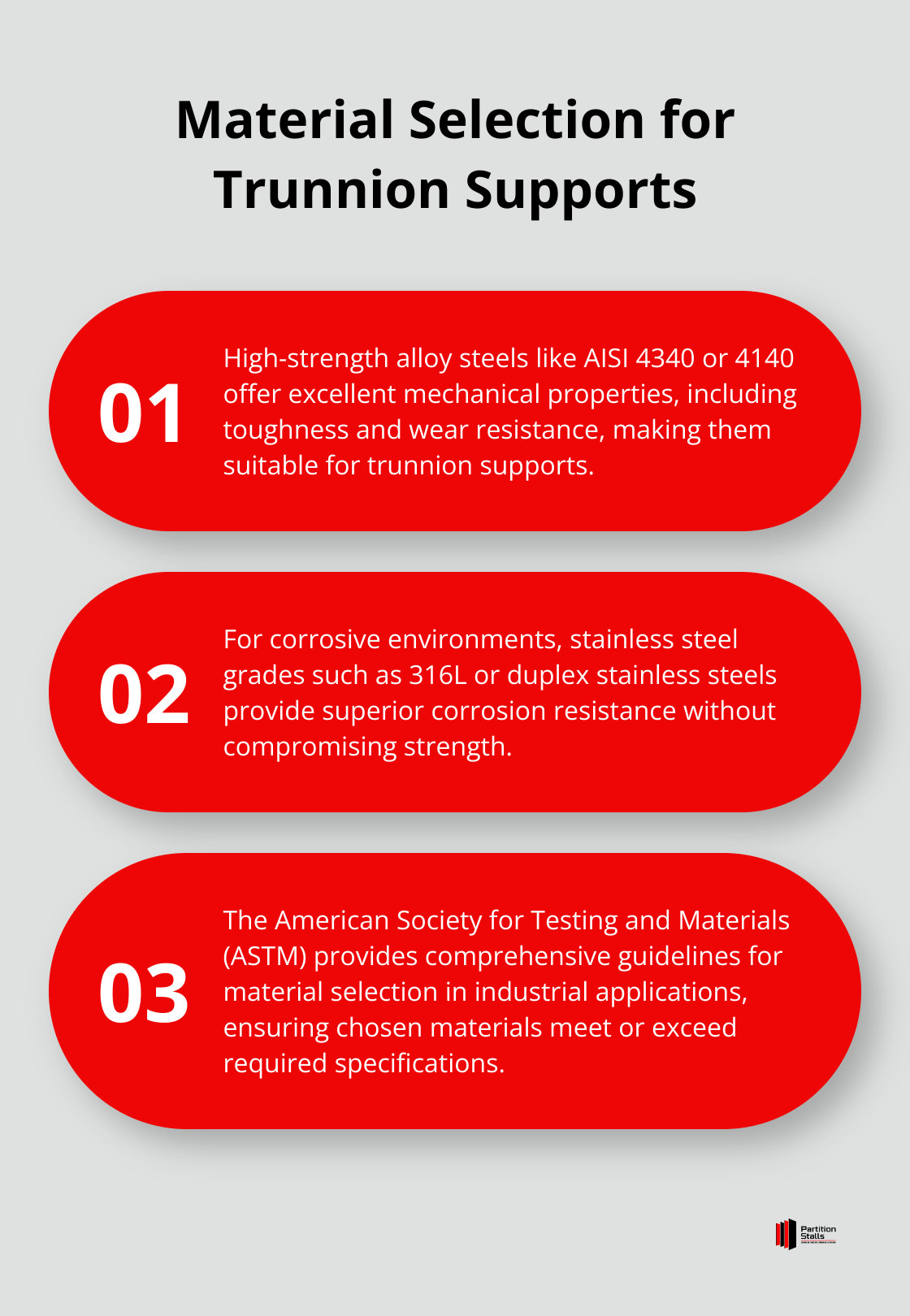

The right materials for trunnion supports ensure durability and performance. High-strength alloy steels (such as AISI 4340 or 4140) offer excellent mechanical properties, including toughness and wear resistance. For corrosive environments, stainless steel grades like 316L or duplex stainless steels provide superior corrosion resistance without compromising strength.
The American Society for Testing and Materials (ASTM) offers comprehensive guidelines for material selection in industrial applications. Engineers should consult these standards to ensure chosen materials meet or exceed required specifications for their specific trunnion support design.
Environmental Considerations
Environmental factors significantly impact the performance and longevity of trunnion support systems. Temperature fluctuations, humidity levels, and exposure to corrosive substances can affect the integrity of the support structure. In marine environments, sacrificial anodes or cathodic protection systems can extend the lifespan of trunnion supports by mitigating corrosion.
A case study from the offshore oil and gas industry showed that implementing a comprehensive corrosion management plan (including specialized coatings and regular inspections) increased the service life of trunnion supports by over 50% in harsh marine conditions.
Safety Standards and Regulatory Compliance
Adherence to safety standards and regulations is essential when designing trunnion support systems. The American Petroleum Institute (API) provides specific guidelines for the design and maintenance of equipment in the oil and gas industry, including trunnion supports. API Standard 610 outlines the minimum requirements for centrifugal pumps in petroleum, petrochemical, and natural gas industries.
The Occupational Safety and Health Administration (OSHA) sets forth regulations to ensure workplace safety. Engineers must incorporate these standards into their designs to prevent accidents and ensure compliance with legal requirements.
The next section will explore specific techniques for optimizing these critical components in industrial machinery, building upon the foundational principles discussed here.
Mastering Trunnion Support Design
Precision in Load Distribution
Optimal load distribution stands as a cornerstone of effective trunnion support design. Advanced finite element analysis (FEA) software like ANSYS or Abaqus allows engineers to model stress distribution with high accuracy. These tools identify potential weak points and optimize the support structure.
A recent study proposed a finite element method for estimating head-stem trunnion performance characteristics, focusing on contact pressure and sliding distance. This approach can help improve the design and performance of trunnion supports in various applications.
Thermal Expansion Considerations
High-temperature environments require special attention to thermal expansion in trunnion support design. Expansion joints or flexible couplings accommodate thermal movement without inducing stress on the system.
Recent research has focused on the effects of expansion joints on reducing thermal stresses in refractory linings, using FEM simulation to analyze thermo-mechanical behavior and failure modes. This type of analysis can be crucial for designing effective expansion joints in trunnion support systems.
Maintenance-Friendly Design
Easy access for lubrication and maintenance proves essential for long-term performance. Strategic placement of access points and removable panels facilitates regular inspections and maintenance tasks.
Fail-Safe Mechanisms and Redundancy
Implementation of fail-safe mechanisms and redundancy in trunnion support systems enhances overall safety and reliability. This approach includes backup bearings, secondary support structures, or load-limiting devices to prevent catastrophic failures.
Material Selection for Durability
Choosing the right materials for trunnion supports ensures longevity and optimal performance. High-strength alloy steels (such as AISI 4340 or 4140) offer excellent mechanical properties, including toughness and wear resistance. For corrosive environments, stainless steel grades like 316L or duplex stainless steels provide superior corrosion resistance without compromising strength.
The American Society for Testing and Materials (ASTM) provides comprehensive guidelines for material selection in industrial applications. Engineers should consult these standards to ensure chosen materials meet or exceed required specifications for their specific trunnion support design.
Final Thoughts
Trunnion support design requires careful consideration of multiple factors. Engineers must analyze loads, calculate stress distribution, select appropriate materials, and account for environmental conditions. Advanced tools like finite element analysis software optimize performance and identify potential issues before implementation.
Professional assistance proves invaluable for complex trunnion support projects. Experienced engineers provide insights, ensure compliance with safety standards, and develop innovative solutions for specific industrial applications. Their expertise navigates the intricacies of design, from material selection to implementing fail-safe mechanisms.
