At Partition Stalls, we understand the critical role of solar panel support structure design in maximizing energy production and system longevity.
Proper support structures are the backbone of any solar installation, ensuring panels withstand environmental challenges while optimizing performance.
This guide will explore key factors, types, and best practices for designing effective solar panel support structures, helping you make informed decisions for your renewable energy projects.
What Factors Shape Solar Panel Support Design?
Environmental Forces
Wind loads stand out as a primary concern for solar panel supports. In areas prone to high winds (coastal regions or open plains), structures must withstand significant lateral forces. The American Society of Civil Engineers (ASCE) provides guidelines in ASCE 7 for calculating wind loads, which vary based on panel height, tilt angle, and local wind patterns.
Snow accumulation adds substantial weight to solar arrays, especially in northern climates. Support structures need to bear not only the weight of the panels but also potential snow loads. Wet snow can weigh over 9 pounds per square foot, significantly impacting the load on solar panels, which typically have a lifespan of 25-30 years.
Seismic activity requires special consideration in earthquake-prone regions. Support structures must flex and absorb ground movements without compromising the integrity of the solar array.
Panel Specifications and Site Conditions
The type and weight of solar panels directly influence support structure design. Monocrystalline panels, known for their efficiency, tend to weigh more than thin-film alternatives. A standard 60-cell residential solar panel weighs between 18 to 50 pounds, while larger commercial panels can tip the scales at up to 80 pounds.
Site-specific requirements also play a vital role. Roof-mounted systems must consider the roof’s structural capacity and existing obstructions (vents or chimneys). Ground-mounted systems must account for soil conditions and potential shading from nearby structures or vegetation.
Material Choices
The selection of materials for support structures determines longevity and performance. Aluminum proves popular due to its lightweight nature and corrosion resistance, making it ideal for coastal areas. Steel offers superior strength but requires proper galvanization or coating to prevent rust.
Composite materials gain traction for their durability and low maintenance requirements. These materials can benefit harsh environments where traditional metals might degrade more quickly.
Structural Integrity and Safety
Support structures must meet local building codes and regulations. These codes often dictate specific structural requirements, setbacks, and permits for solar installations. The International Residential Code (IRC) and International Building Code (IBC) set structural requirements for solar panel installations in many jurisdictions.
Safety considerations extend beyond the structure itself. Systems should provide clear access pathways for firefighters and emergency personnel to meet fire safety regulations during installations.
Cost and Efficiency Considerations
The design of solar panel support structures impacts both initial costs and long-term efficiency. Designers must balance the use of robust materials with cost-effectiveness. Innovative designs can reduce material usage without compromising structural integrity.
Proper design also affects the efficiency of the solar panels. The inclination of solar panels proves critical, as different tilting angles can significantly influence energy production. Some support structures allow for adjustable tilting angles to optimize energy collection throughout different seasons.
As we move forward, we’ll explore the various types of solar panel support structures that address these factors in different ways.
Solar Panel Support Structures Explained
At Partition Stalls, we’ve observed how the right support structure can significantly impact a solar installation. Let’s explore the main types of solar panel support structures and their unique characteristics.
Roof-Mounted Systems: Maximizing Existing Space

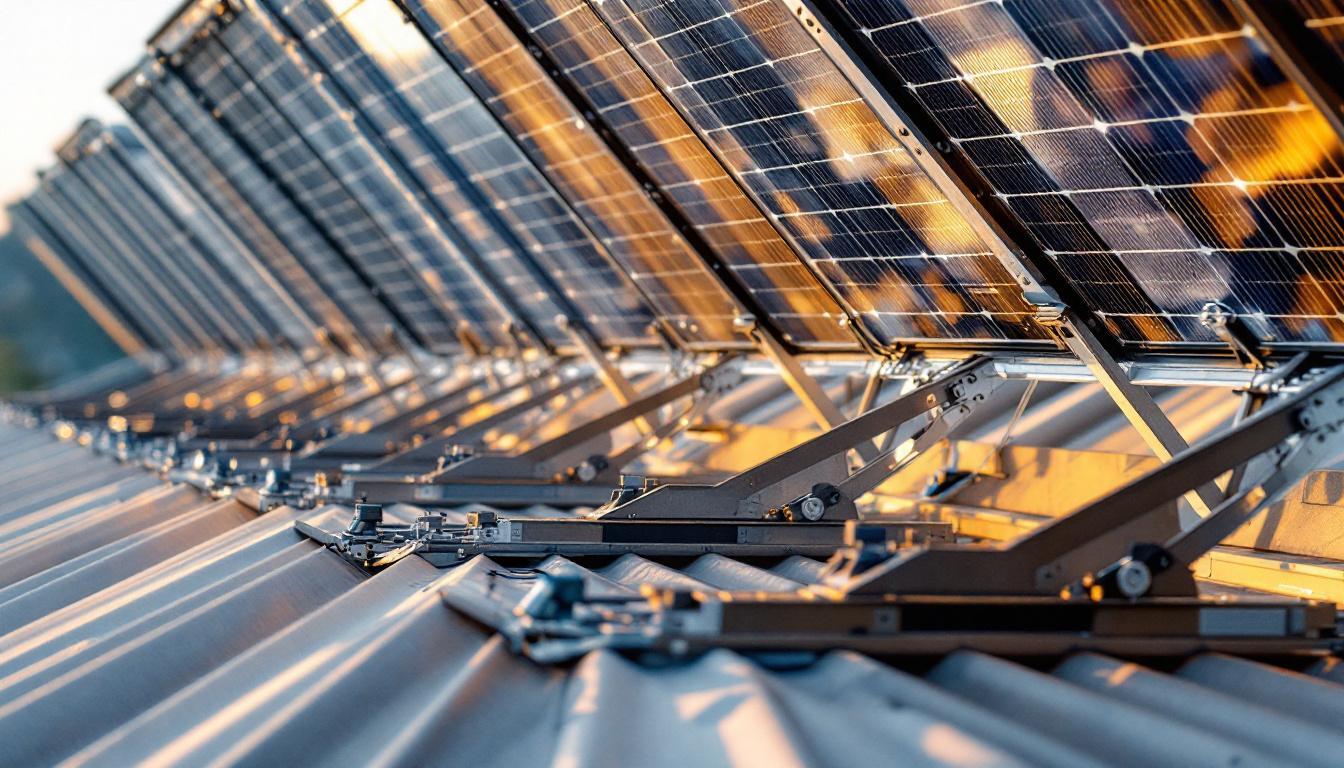

Roof-mounted systems dominate residential and commercial buildings. They utilize existing roof space, making them ideal for areas with limited ground space. These systems typically use either rail-mounted or ballasted designs.
Rail-mounted systems attach directly to the roof structure, providing a secure foundation. They suit pitched roofs and can withstand high wind loads. However, they require roof penetrations, which need proper waterproofing to prevent leaks.
Ballasted systems use weight to secure panels without penetrating the roof. They excel on flat roofs and offer easier installation. The downside? They add significant weight to the roof (sometimes necessitating structural reinforcement).
Ground-Mounted Systems: Flexibility and Scale
Ground-mounted systems offer flexibility in panel orientation and tilt angle, maximizing energy production. They suit large-scale installations or situations where roof space is limited or unsuitable.
These systems typically use driven piles or concrete foundations. Driven piles cost less and install quickly in suitable soil conditions. Concrete foundations, while more expensive, provide stability in challenging soil conditions or areas with high wind loads.
Ground-mounted systems allow easy access for maintenance and cleaning, potentially increasing system efficiency over time. However, they require available land and may face more stringent permitting processes.
Tracking Systems: Chasing the Sun

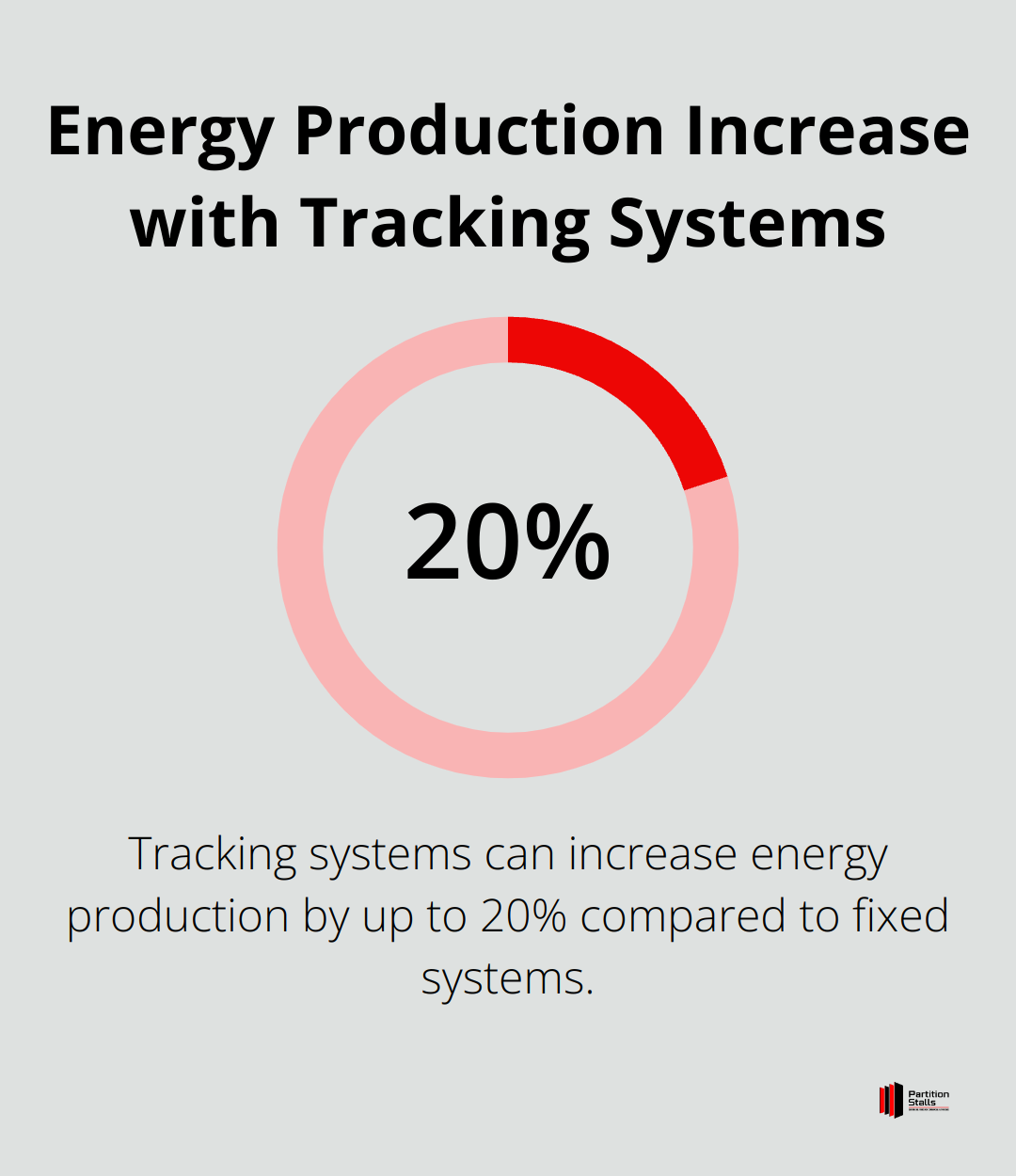

Tracking systems follow the sun’s movement, increasing energy production by 15-20% compared to fixed systems. Single-axis trackers rotate panels east to west, while dual-axis trackers also adjust for seasonal changes in the sun’s angle.
While tracking systems boost energy output, they incur higher initial costs and more complex maintenance requirements. They benefit areas with high direct sunlight most and typically appear in large-scale, ground-mounted installations.
Building-Integrated Photovoltaics (BIPV): The Future of Solar
BIPV systems integrate solar panels directly into building materials, such as roofing tiles, facades, or windows. This approach combines energy generation with architectural design, potentially reducing overall construction costs.
BIPV systems offer aesthetic advantages and can provide value in areas with strict building codes or historic preservation requirements. However, they often have lower efficiency than traditional panels and can present more challenges in repair or replacement.
The selection of the right support structure depends on various factors, including available space, budget, local regulations, and energy production goals. As we move forward, we’ll examine best practices for designing these support structures to ensure optimal performance and longevity.
How to Design Robust Solar Panel Support Structures

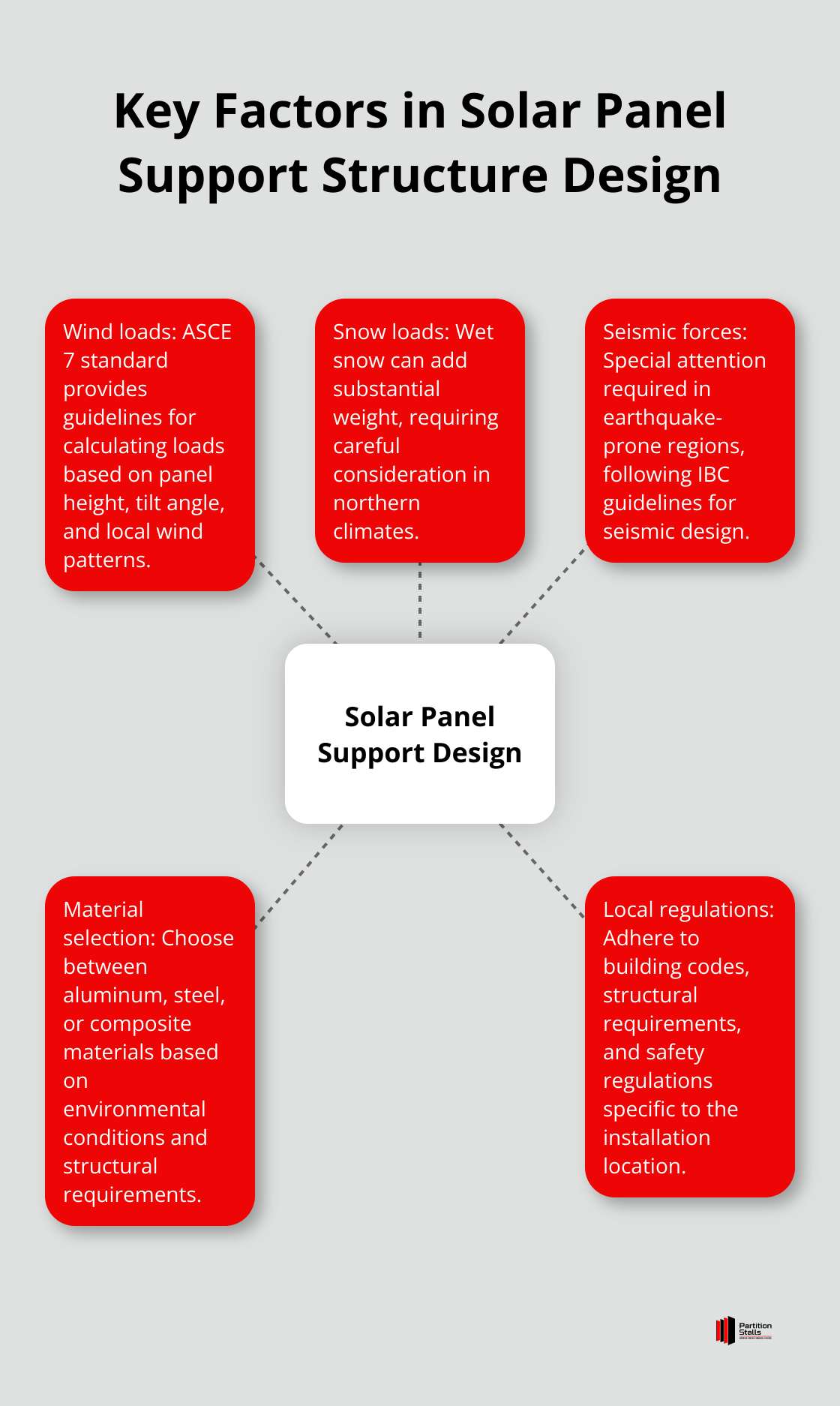

Calculate Structural Loads Accurately
Accurate load calculations form the foundation of any reliable solar support structure. Wind loads often pose the greatest challenge, especially in coastal or open areas. The American Society of Civil Engineers (ASCE) 7 standard provides guidelines for calculating these loads based on factors like panel height, tilt angle, and local wind patterns.

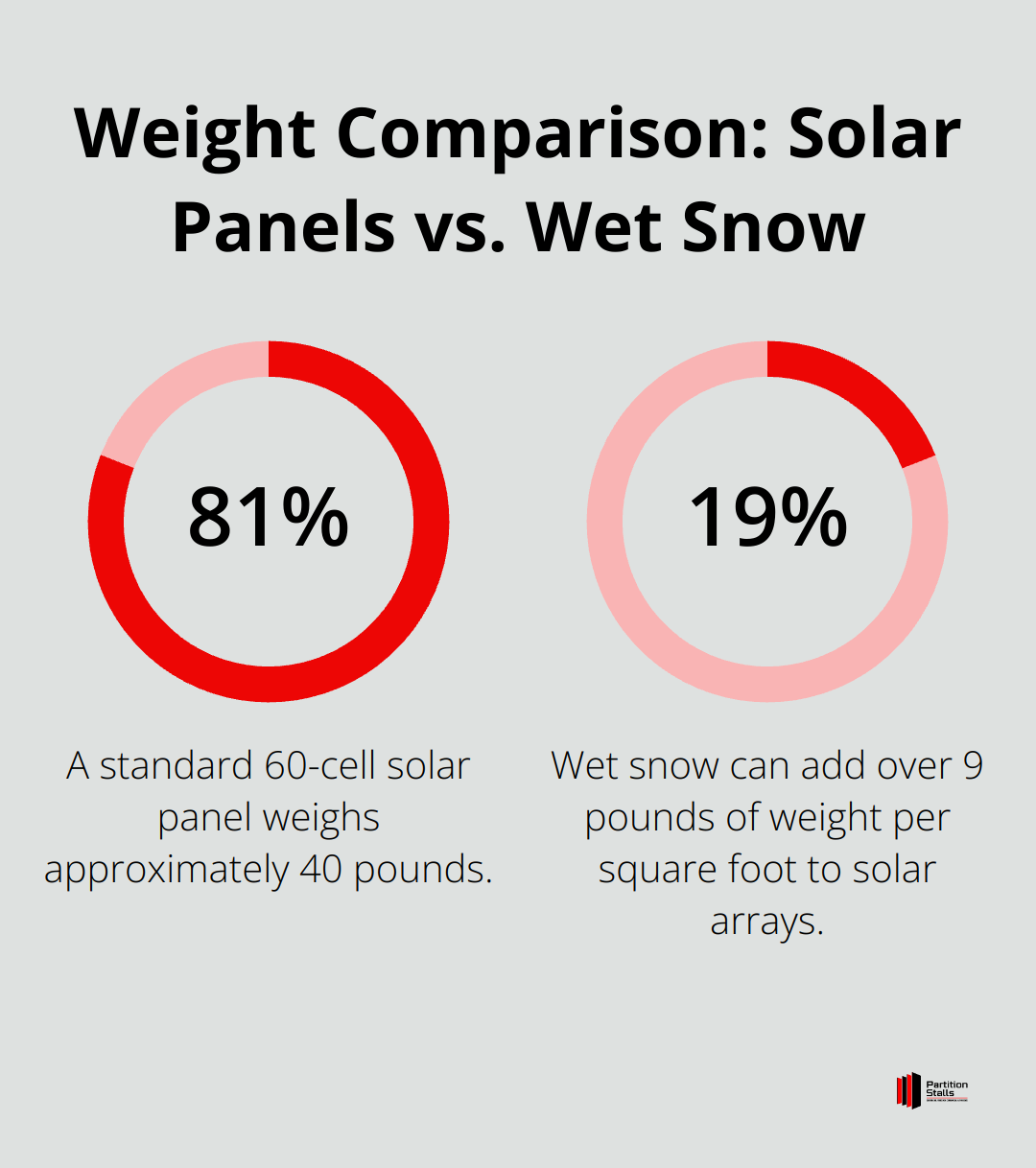

Snow loads can add significant weight to solar arrays, particularly in northern climates. An average 60-cell solar panel typically weighs around 40 pounds, but wet snow can add substantial weight as well. You must factor in this additional weight when designing your support structure to prevent collapse during heavy snowfall.
Proper design and engineering of solar panel structures must take into account several factors, such as wind loads, snow loads, and seismic forces. Seismic forces require special attention in earthquake-prone regions. The International Building Code (IBC) offers guidelines for seismic design that you should follow to ensure your structure can withstand ground movements without compromising the integrity of the solar array.
Choose Materials Wisely
Material selection plays a key role in the longevity and performance of solar support structures. Aluminum is a popular choice due to its lightweight nature and natural corrosion resistance, making it ideal for coastal areas. Steel offers superior strength but requires proper galvanization or coating to prevent rust.
For harsh environments, consider composite materials. These offer excellent durability and low maintenance requirements, potentially outlasting traditional metals in challenging conditions.
When selecting materials, always consider their compatibility with the solar panels and other system components. Incompatible materials can lead to galvanic corrosion, significantly reducing the lifespan of your support structure.
Prioritize Easy Installation and Maintenance
A well-designed support structure should facilitate easy installation and ongoing maintenance. This not only reduces initial costs but also ensures the system remains efficient over its 25-30 year lifespan.
For roof-mounted systems, consider designs that minimize roof penetrations to reduce the risk of leaks. Ground-mounted systems should allow easy access for panel cleaning and maintenance, which can boost energy production by up to 5% annually.
Tracking systems require more complex maintenance due to their moving parts. Design these with easily accessible components and consider including monitoring systems to alert maintenance teams to potential issues before they become critical.
Optimize for Cost-Effectiveness
The design of solar panel support structures impacts both initial costs and long-term efficiency. You must balance the use of robust materials with cost-effectiveness. Innovative designs can reduce material usage without compromising structural integrity.
Try to incorporate adjustable features in your support structure design. Some support structures allow for adjustable tilting angles to optimize energy collection throughout different seasons (which can increase overall system efficiency).
Adhere to Local Regulations
Support structures must meet local building codes and regulations. These codes often dictate specific structural requirements, setbacks, and permits for solar installations. The International Residential Code (IRC) and International Building Code (IBC) set structural requirements for solar panel installations in many jurisdictions.
Safety considerations extend beyond the structure itself. Systems should provide clear access pathways for firefighters and emergency personnel to meet fire safety regulations during installations.
Final Thoughts
Solar panel support structure design forms the backbone of successful renewable energy projects. These structures ensure the longevity and efficiency of solar installations while safeguarding significant investments in clean energy. The design process requires a balance between performance, durability, and cost-effectiveness, considering environmental factors, panel specifications, and site conditions.
We anticipate exciting trends in support structure design as the solar industry evolves. Advancements in materials science may yield stronger, lighter components that reduce installation costs and improve overall system efficiency. The future also points towards increased customization and aesthetics in solar support structures, potentially leading to more widespread acceptance and integration of solar technology in diverse settings.
