At Partition Stalls, we understand the importance of ADA-compliant bathroom grab bars for ensuring safety and accessibility.
Installing these essential fixtures correctly is crucial for meeting legal requirements and providing support for those who need it most.
This guide will walk you through the process of installing ADA-compliant bathroom grab bars, from understanding the regulations to the final installation steps.
ADA Grab Bar Requirements
Placement and Dimensions

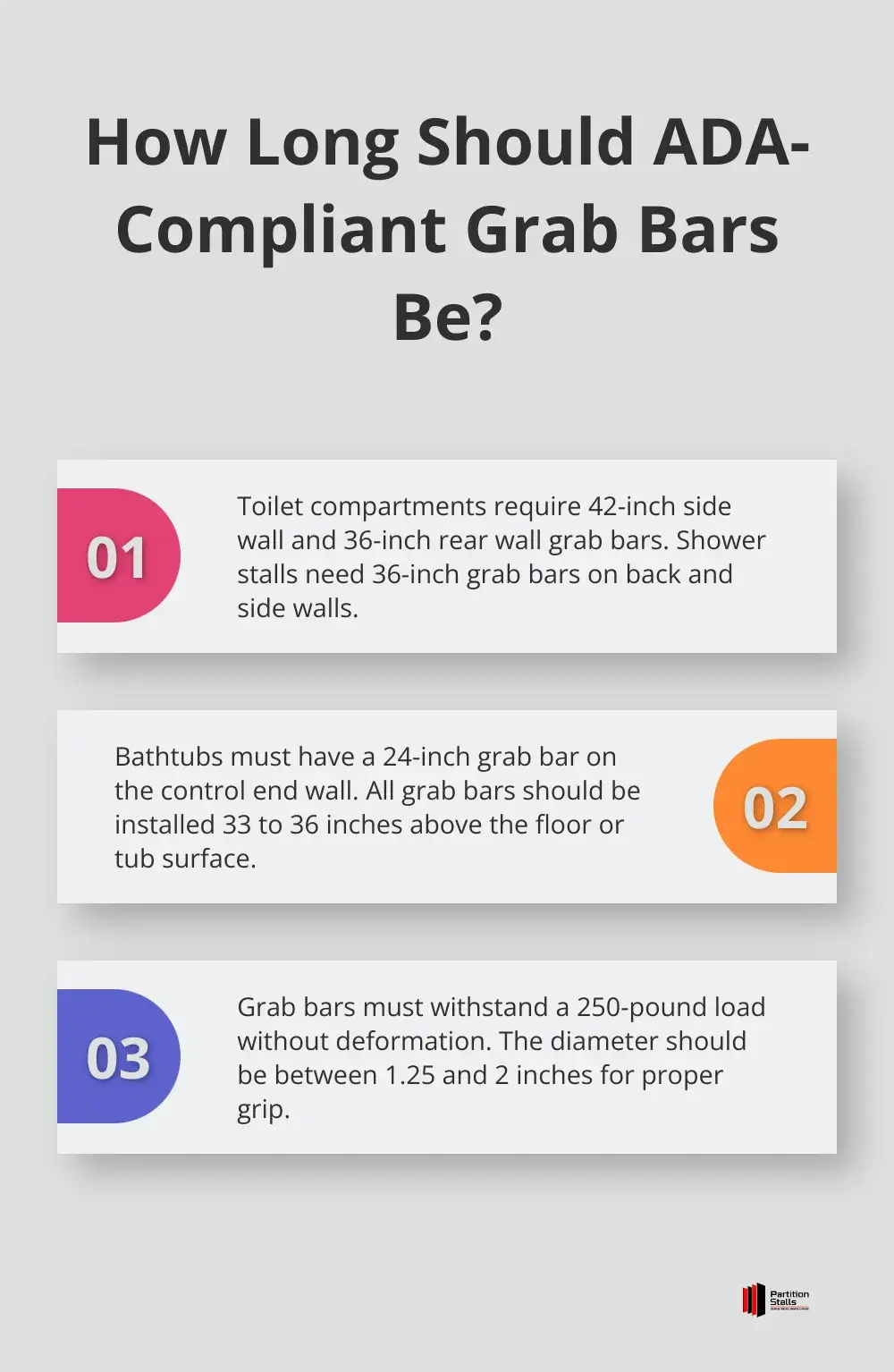

The Americans with Disabilities Act (ADA) sets specific guidelines for grab bar installation in bathrooms. These standards ensure accessibility and safety for individuals with disabilities. In toilet compartments, horizontal grab bars must extend at least 42 inches on the side wall and 36 inches on the rear wall. Install these bars between 33 and 36 inches above the finished floor.
Shower stalls require a minimum of one grab bar on each back and side wall, measuring at least 36 inches in length. For bathtubs, a grab bar 24 inches (610 mm) long minimum shall be installed on the control end wall at the front edge of the bathtub. Position these bars 33 to 36 inches above the tub floor. All grab bars must withstand a load of at least 250 pounds (113 kg) without any permanent deformation to guarantee user safety.
Types of ADA-Compliant Grab Bars
Several grab bar types meet ADA standards:
- Straight grab bars: The most versatile option, suitable for various locations.
- L-shaped grab bars: Provide support in corner areas.
- Flip-up grab bars: Offer flexibility in spaces where permanent fixtures might obstruct movement.
The material and finish of grab bars play a significant role in their effectiveness. Stainless steel and nylon are popular choices due to their durability and resistance to corrosion. The surface should resist slipping to enhance safety in wet conditions. ADA guidelines specify a diameter range of 1.25 to 2 inches for proper grip.
Installation Considerations
Proper installation is vital for both safety and compliance. Securely anchor grab bars to wall studs or solid blocking to support the required weight. Maintain a space of exactly 1.5 inches between the wall and the grab bar to allow for a firm grip while preventing entrapment.
Professional installation helps ensure full compliance with ADA standards. Experts can guide you through the selection of appropriate grab bars and provide installation services that meet all regulatory requirements.
Material Selection
Choose grab bar materials that withstand frequent use and exposure to moisture. Stainless steel remains a top choice due to its strength and corrosion resistance. Some manufacturers offer powder-coated finishes for added durability and aesthetic appeal. Nylon-coated grab bars provide a warm touch and come in various colors to complement bathroom decor.
Additional Accessibility Features
While grab bars form a cornerstone of bathroom accessibility, consider integrating other ADA-compliant features to create a fully accessible space. These may include:
- Lowered sinks and mirrors
- Lever-style faucets
- Raised toilet seats
- Non-slip flooring
As we move forward, let’s explore the tools and materials needed for a successful grab bar installation.
Preparing Your Bathroom for Grab Bar Installation
Essential Tools and Materials
To install grab bars correctly, you need specific tools. A stud finder helps locate wall studs, which provide necessary support. A level ensures straight bars, while a drill with various bits creates pilot holes and secures the bars. Keep a pencil for marking installation points and a tape measure for precise positioning.
For materials, you’ll need grab bars, mounting screws, and potentially wall anchors (if installing in areas without studs). The American National Standards Institute recommends stainless steel grab bars for durability and corrosion resistance in bathroom environments.
Precise Measurements and Markings

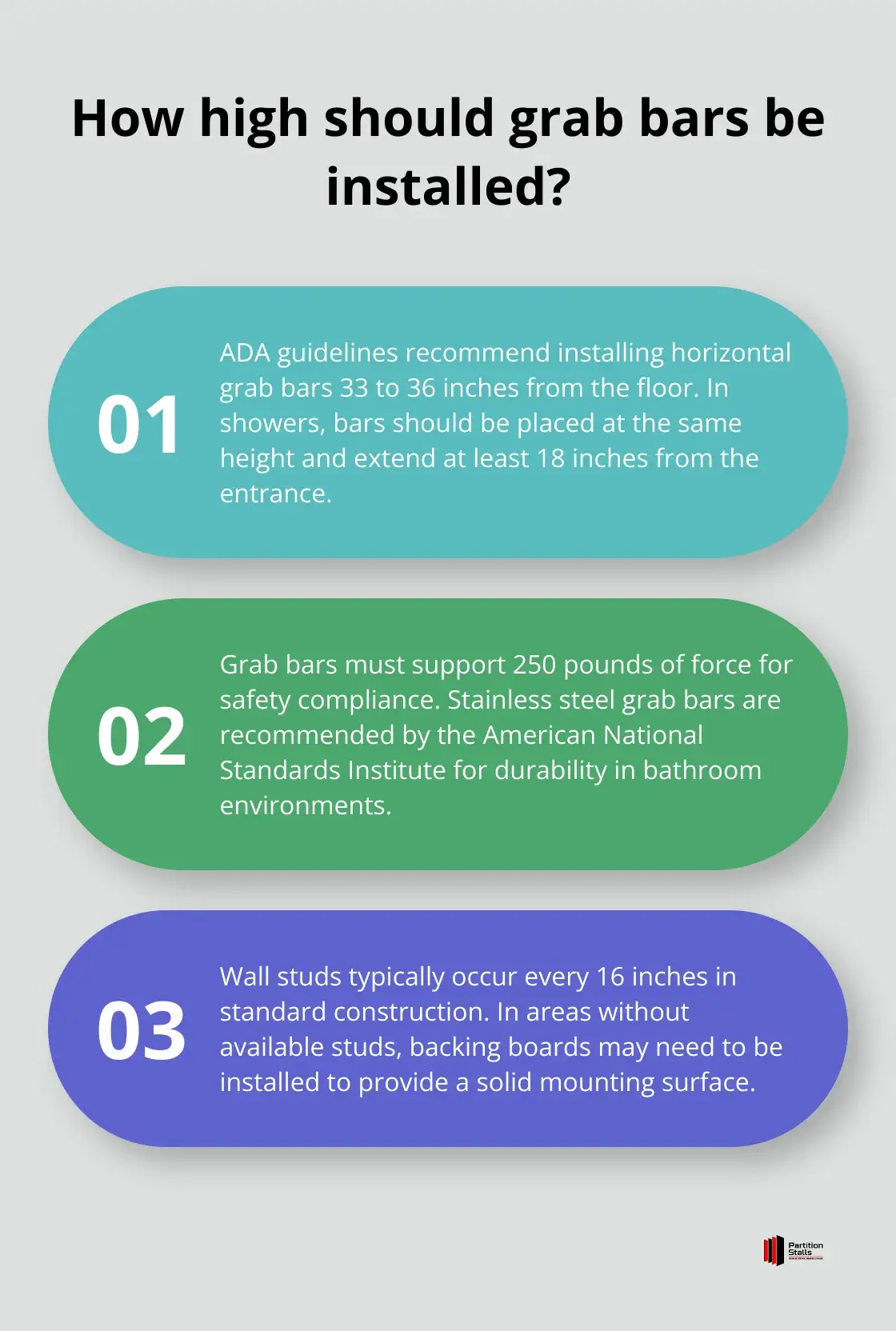

Accuracy is vital when installing ADA-compliant grab bars. Use your tape measure to mark exact locations for bar installation, adhering to ADA guidelines. For toilet areas, measure 33 to 36 inches from the floor for horizontal bars. In showers, place bars at the same height and extend at least 18 inches from the shower entrance.
Mark these points clearly with your pencil, but avoid large or difficult-to-remove marks. For multiple bar installations, use painter’s tape to visualize the layout before making permanent marks.
Locating Wall Studs and Reinforcement Points
The strength of your grab bar installation depends on proper anchoring. Use your stud finder to locate wall studs (typically occurring every 16 inches in standard construction). Mark these locations clearly as primary mounting points.
In areas without available studs (such as tiled bathrooms), you may need to install backing boards. This process involves cutting into the wall to insert a wooden board between studs, providing a solid mounting surface. While more complex, this step ensures your grab bars can support the required 250 pounds of force.
Professional Assistance
If you feel uncomfortable with any part of this process, consider consulting a professional. Many companies offer expert installation services to ensure grab bars meet all safety and compliance standards. These professionals can handle everything from initial measurements to final installation, providing peace of mind and a bathroom that’s safe for all users.
With your bathroom properly prepared, it’s time to move on to the actual installation process. The next section will guide you through the step-by-step procedure for installing ADA-compliant grab bars in various bathroom settings.
How to Install ADA-Compliant Grab Bars Step by Step
Drywall Installation

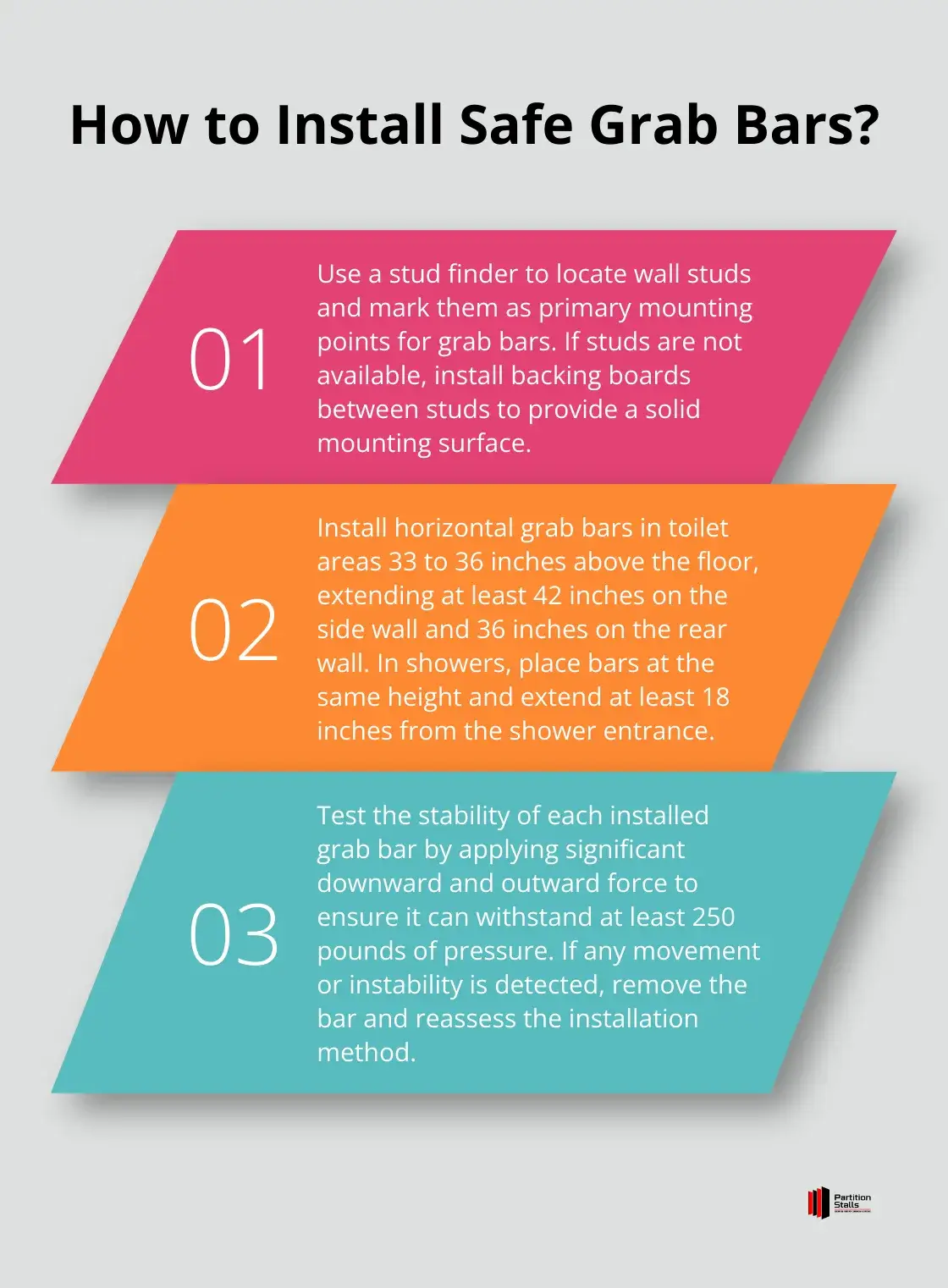

To install grab bars on drywall, first locate the wall studs with a stud finder. Mark these spots clearly as your primary mounting points. Drill pilot holes at the marked locations, aligning them with the grab bar’s mounting holes. Use a level to ensure your markings are straight before drilling.
Hold the grab bar against the wall and insert the mounting screws. Tighten them securely, but avoid over-tightening to prevent drywall damage. If you can’t find a stud for all mounting points, use heavy-duty wall anchors rated for at least 250 pounds of force.
Tile Surface Installation
Tile surfaces require a different approach. Use a diamond-tipped drill bit to create holes without cracking the tile. Mark your drilling spots and apply masking tape over each mark to prevent the drill bit from slipping.
Drill slowly and steadily, applying constant pressure. After creating the holes, insert plastic anchors designed for tile. These expand behind the tile, providing a secure hold. Mount the grab bar using screws that fit these anchors.
Securing to Wall Studs
Secure grab bars directly to wall studs whenever possible. This method provides the strongest support, which is essential for meeting ADA requirements. If studs aren’t available at all mounting points, install backing boards between studs. This involves cutting into the wall and adding a wooden board for additional support.
Testing Stability

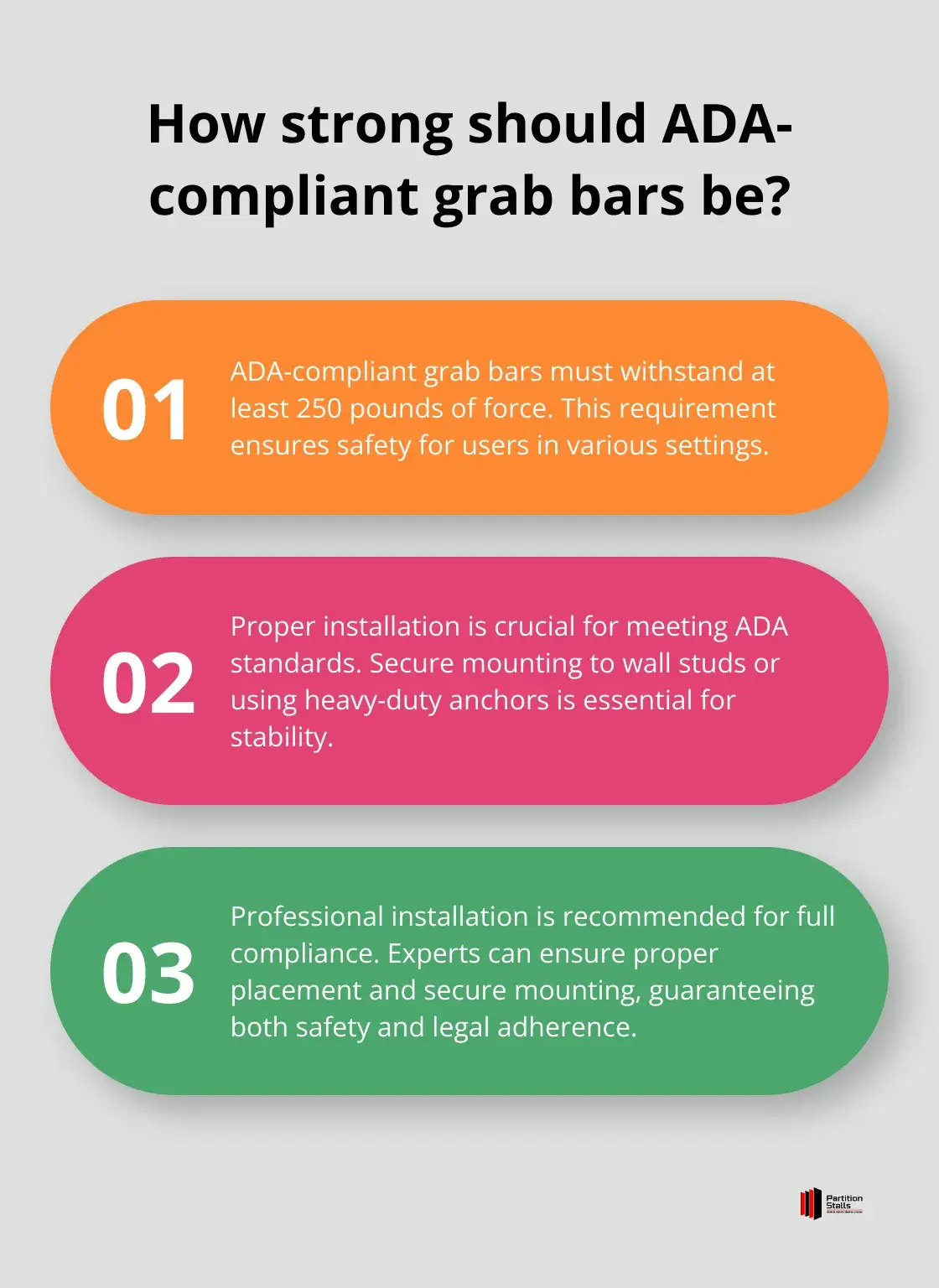

After installation, test the stability of each grab bar. Apply significant downward and outward force to ensure they can withstand at least 250 pounds of pressure (as required by ADA standards). If you notice any movement or instability, remove the bar and reassess your installation method.
Professional Installation
We recommend professional installation for ADA-compliant grab bars. Experts ensure proper placement, secure mounting, and full compliance with all relevant regulations. This approach not only guarantees safety but also provides peace of mind for facility managers and users alike.
Proper installation is essential for both safety and legal compliance. Take your time, double-check your measurements, and seek professional help if you’re unsure about any step in the process. (Many companies offer expert installation services to ensure grab bars meet all safety and compliance standards.)
Final Thoughts
ADA-compliant bathroom grab bars provide essential safety and accessibility in restroom environments. Proper placement, secure mounting, and adherence to regulations ensure user safety and legal compliance. These grab bars must withstand significant force, so appropriate materials and installation techniques are necessary for both drywall and tile surfaces.
Regular maintenance and inspections keep grab bars in optimal condition. Facility managers should check for loosening, corrosion, or damage periodically and address issues promptly to maintain safety standards. This proactive approach demonstrates care for all users, regardless of their mobility needs.
Partition Stalls offers comprehensive services for ADA-compliant bathroom grab bars and other restroom solutions. Their team can guide you through selection, installation, and maintenance (ensuring your restroom facilities meet all necessary standards). This commitment to accessibility and safety is an essential aspect of responsible facility management.
