Commercial restroom grab bars are essential for ensuring safety and accessibility in public facilities. These crucial components come in various types, materials, and finishes, each serving specific purposes.
At Partition Stalls, we understand the importance of selecting the right grab bars for your commercial restrooms. This guide will walk you through the key factors to consider when choosing and installing these vital safety features, helping you create a more inclusive and secure environment for all users.
Which Grab Bar Types Are Best for Commercial Restrooms?

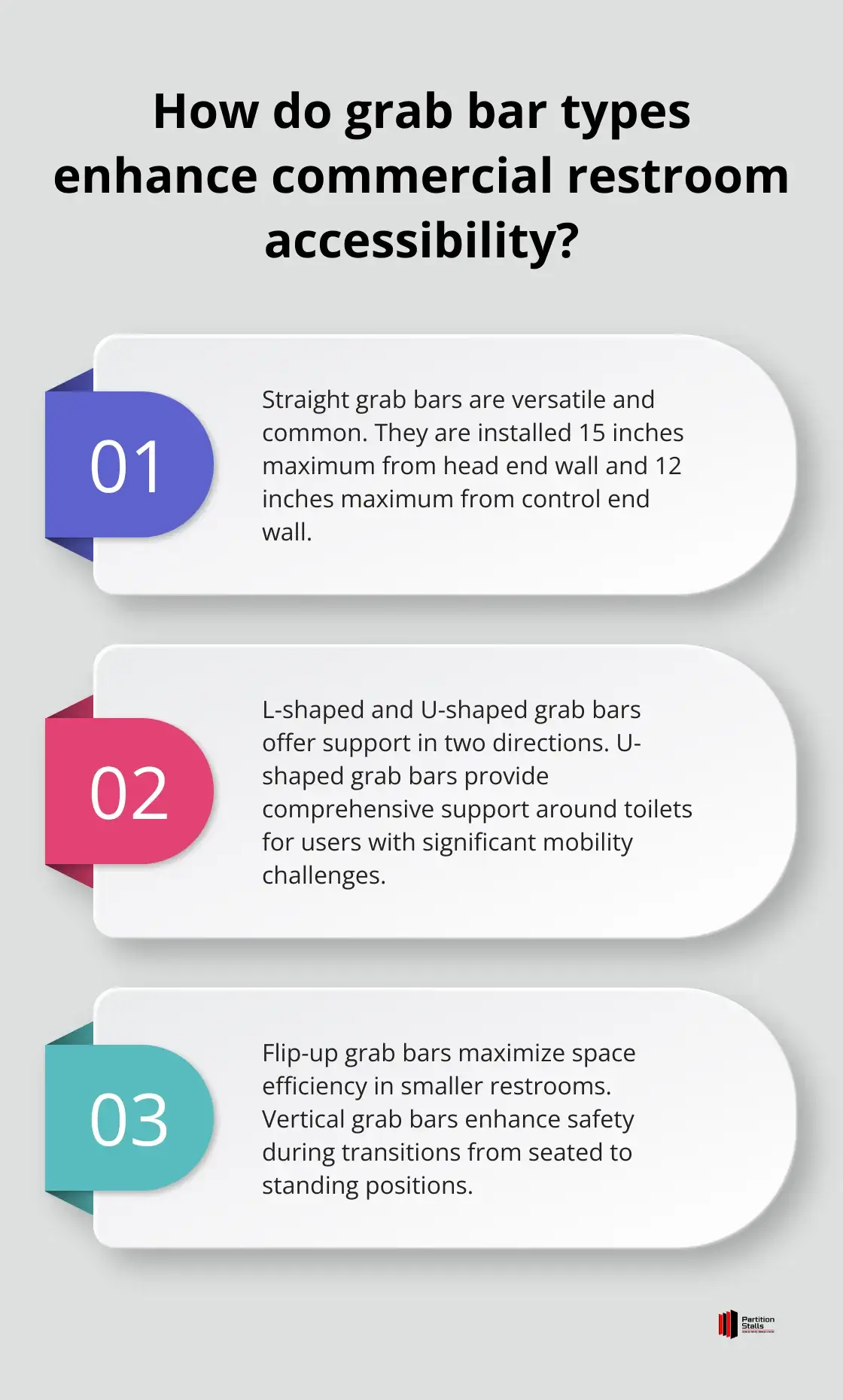

Commercial restroom grab bars come in various shapes and sizes, each designed to meet specific needs and enhance accessibility. The right grab bar can make a significant difference in user safety and comfort.

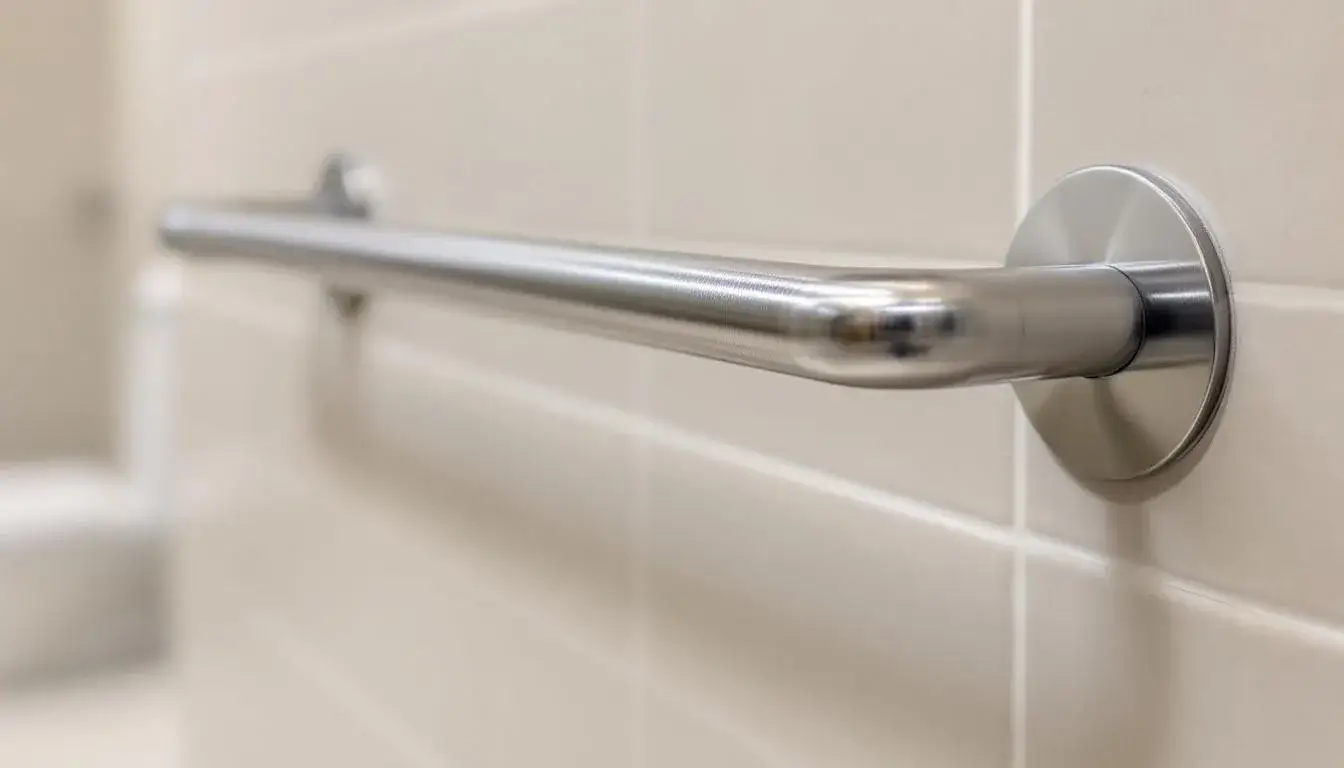

Straight Grab Bars: The Versatile Standard
Straight grab bars are the most common type found in commercial restrooms. Each grab bar shall be installed 15 inches (380 mm) maximum from the head end wall and 12 inches (305 mm) maximum from the control end wall. These bars provide essential support for users when transferring to and from toilets or when moving around the restroom. Installers typically place these horizontally on side walls and behind toilets. Their simplicity makes them easy to clean and maintain (a crucial factor for high-traffic areas).
L-Shaped and U-Shaped Grab Bars: Extra Support Where It’s Needed
L-shaped and U-shaped grab bars offer support in two directions, making them ideal for corner installations or areas where users need to change direction. The required 12″ minimum clearance limits to a narrow range (45″ to 48″) the height of accessible operable parts depending on the grab bar height (33″ to 36″). U-shaped grab bars (often called toilet surrounds) provide comprehensive support around toilets. These are particularly beneficial in spaces designed for users with more significant mobility challenges.
Flip-Up Grab Bars: Maximizing Space Efficiency
In smaller restrooms or where flexibility is key, flip-up grab bars are an excellent choice. Users can fold these bars up against the wall when not in use, saving space and allowing for easier cleaning. They’re particularly useful in accessible toilet partitions where transfer space is required.
Vertical Grab Bars: Enhancing Safety During Transitions
While not always mandated by ADA guidelines, vertical grab bars are becoming increasingly popular in commercial restrooms. They provide crucial support for users transitioning from a seated to standing position. Many experts recommend installing these alongside toilets or in shower areas for added safety.
When selecting grab bars for your commercial restroom, consider the specific needs of your users and the layout of your space. Proper placement and a mix of different types can significantly enhance accessibility and safety. The next section will explore the various materials and finishes available for grab bars, helping you make an informed decision for your facility.
What Materials Are Best for Commercial Grab Bars?
The choice of materials and finishes for commercial grab bars significantly impacts their durability, aesthetics, and user safety. High-quality materials ensure longevity and effectiveness in high-traffic environments.
Stainless Steel: The Industry Standard

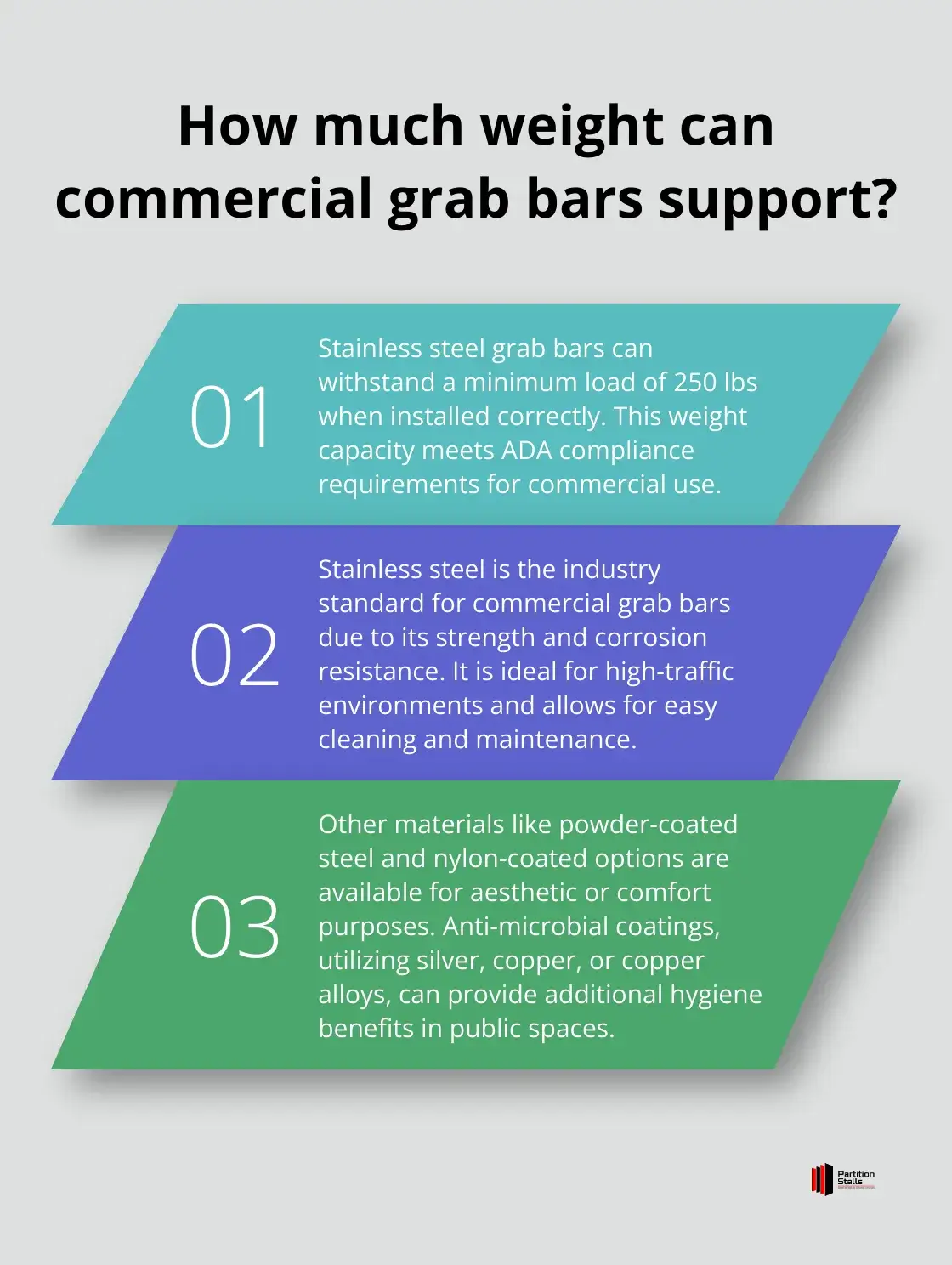

Stainless steel remains the top choice for commercial grab bars. Its exceptional strength and corrosion resistance make it ideal for busy settings. Stainless steel grab bars can withstand a minimum load of 250 lbs when installed correctly, meeting ADA compliance requirements. This material also allows for easy cleaning and maintenance.
Powder-Coated Steel: Strength Meets Style
Facilities looking to add color or match specific design schemes often opt for powder-coated steel grab bars. The powder coating process creates a durable finish that resists chipping and scratching. However, the coating may wear over time in high-use areas, potentially requiring more frequent replacement compared to bare stainless steel.
Nylon-Coated Options: Comfort and Warmth
Some users find metal grab bars uncomfortable to grip, especially in colder environments. Nylon-coated grab bars provide a warmer, softer surface while maintaining necessary strength. These are particularly popular in healthcare settings where patient comfort takes priority. The nylon coating can present challenges in cleaning and may show wear more quickly than metal options.
Anti-Microbial Coatings: Enhanced Hygiene
With increased focus on hygiene in public spaces, anti-microbial coatings have gained popularity. These specialized finishes, such as those utilizing silver, copper, or copper alloys, can help combat antimicrobial-resistant bacteria. While they add an extra layer of protection, regular cleaning remains necessary to maintain a hygienic environment.
The specific needs of your facility should guide your material selection. High-traffic areas benefit from stainless steel’s durability, while design-focused spaces might prefer powder-coated options. Healthcare or assisted living facilities could find nylon-coated or anti-microbial grab bars most suitable. The next section will explore ADA compliance and installation guidelines to ensure your chosen grab bars meet all necessary standards.
How to Ensure ADA Compliance When Installing Grab Bars
Placement and Height: The Key to Accessibility

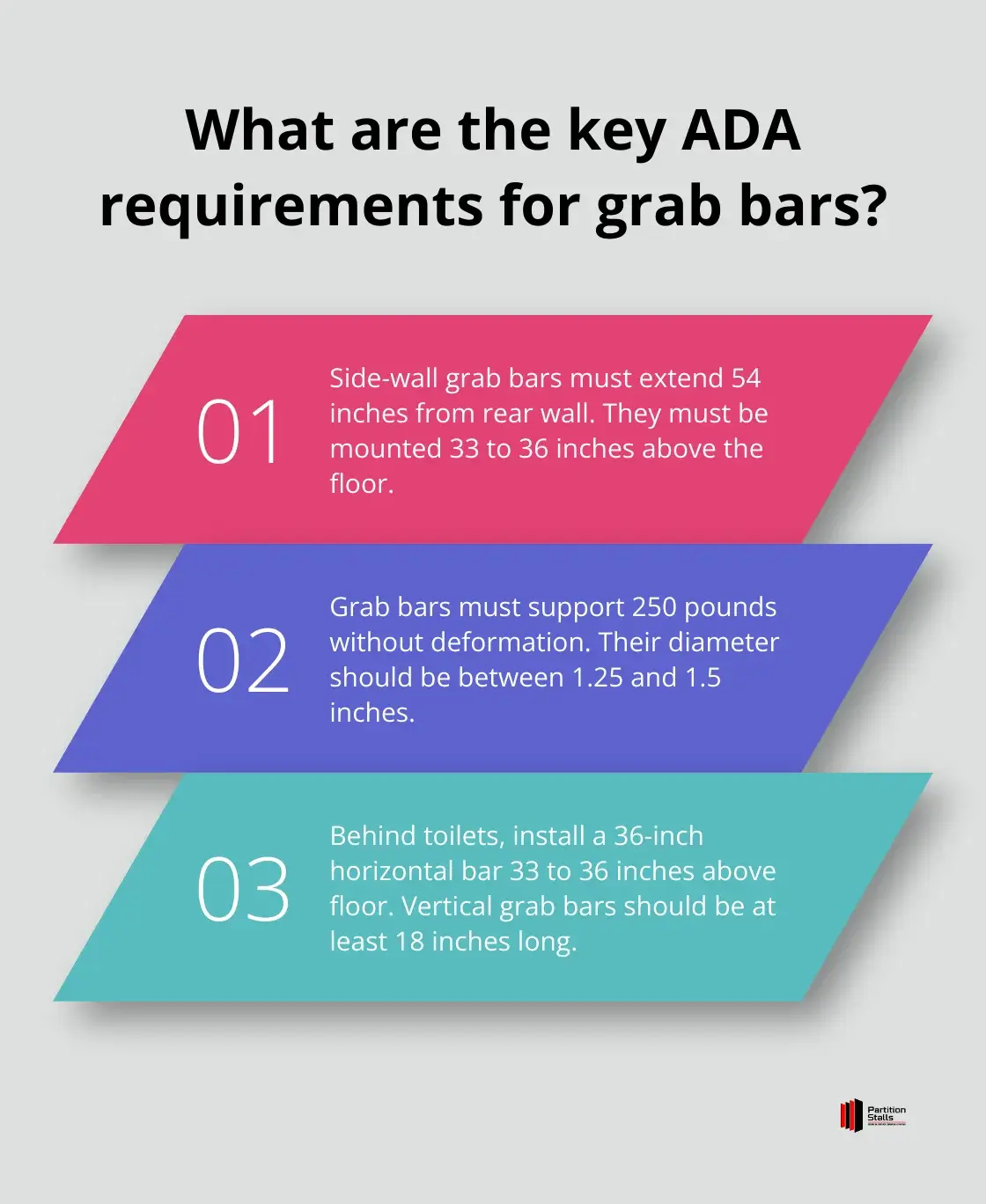

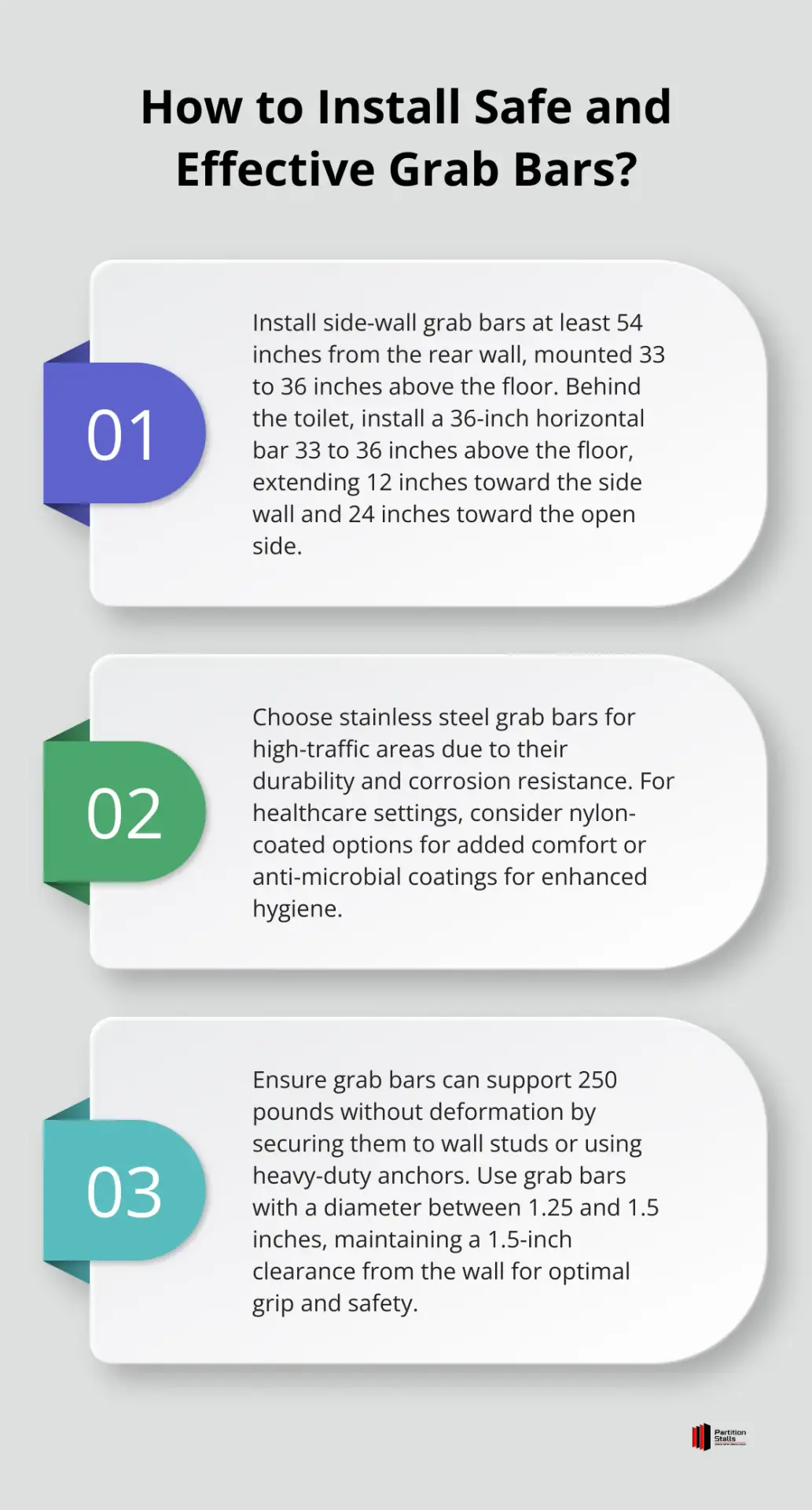

The Americans with Disabilities Act (ADA) sets specific standards for grab bar installation. Side-wall grab bars must extend at least 54 inches from the rear wall and mount 33 to 36 inches above the floor. Behind the toilet, install a horizontal bar 36 inches long, positioned 33 to 36 inches above the floor. This bar should extend from the centerline of the toilet 12 inches toward the side wall and 24 inches toward the open side.
Many local codes require vertical grab bars (although not mandated by ADA). Install these at least 18 inches long, with the bottom end 39 to 41 inches above the floor. This placement provides support for users transitioning from sitting to standing.
Load-Bearing and Diameter: Prioritizing Safety
Grab bars must withstand significant force. The ADA specifies that grab bars must be able to support a weight of 250 pounds (113 kg) without any permanent deformation. To meet this standard, secure grab bars to wall studs or use heavy-duty anchors designed for high-load applications.
The diameter of the grab bar also matters. ADA guidelines specify a diameter between 1.25 and 1.5 inches. This range allows for a comfortable, secure grip for most users. Maintain a clearance of 1.5 inches between the grab bar and the wall to prevent hand entrapment.
Length and Clearance: Optimizing Usability
Grab bar length varies based on location and purpose. A 42 inches (1065 mm) minimum length grab bar is required on the side wall, spaced a maximum of 12 inches (305 mm) from the back wall and extending a minimum of 54 inches (1370 mm) from the rear wall. Those behind toilets need to be at least 36 inches. In shower areas, horizontal grab bars must span the full length of the long wall.
Clearance around grab bars is equally important. Ensure at least 12 inches of clear space above the grab bar and 1.5 inches below it. This spacing allows users to grip the bar comfortably without obstruction.
Installation Best Practices
Proper installation is non-negotiable. Even the highest quality grab bars can fail if not installed correctly. Always use appropriate mounting hardware and follow manufacturer guidelines. Regular inspections help ensure grab bars remain secure and functional over time.
Adherence to these ADA guidelines and installation best practices creates a safer, more inclusive environment for all restroom users. Accessibility isn’t just about compliance; it’s about dignity and independence for every individual who uses your facilities.
Final Thoughts
Commercial restroom grab bars play a vital role in ensuring safety and accessibility for all users. The selection process involves considering various types, materials, and compliance standards to create an inclusive environment. Proper installation and regular maintenance are essential to guarantee the long-term effectiveness of these safety features.
Partition Stalls offers expert guidance on selecting and installing the right grab bars for specific needs. We provide high-quality commercial restroom solutions, including durable partitions, ergonomic grab bars, and other essential fixtures tailored to various facilities. Our team understands the complexities of designing and equipping commercial restrooms to meet both functional and aesthetic requirements.
Contact Partition Stalls today for a free consultation to enhance your commercial restroom’s safety and accessibility. We will help you transform your restroom facilities with stylish, durable solutions that respect the needs of all users. Our goal is to create welcoming spaces that go beyond mere regulatory compliance.
